| Component Type | Part / Model Number | QTY | Description |
| | | |
| Configuration A | | | |
| | | |

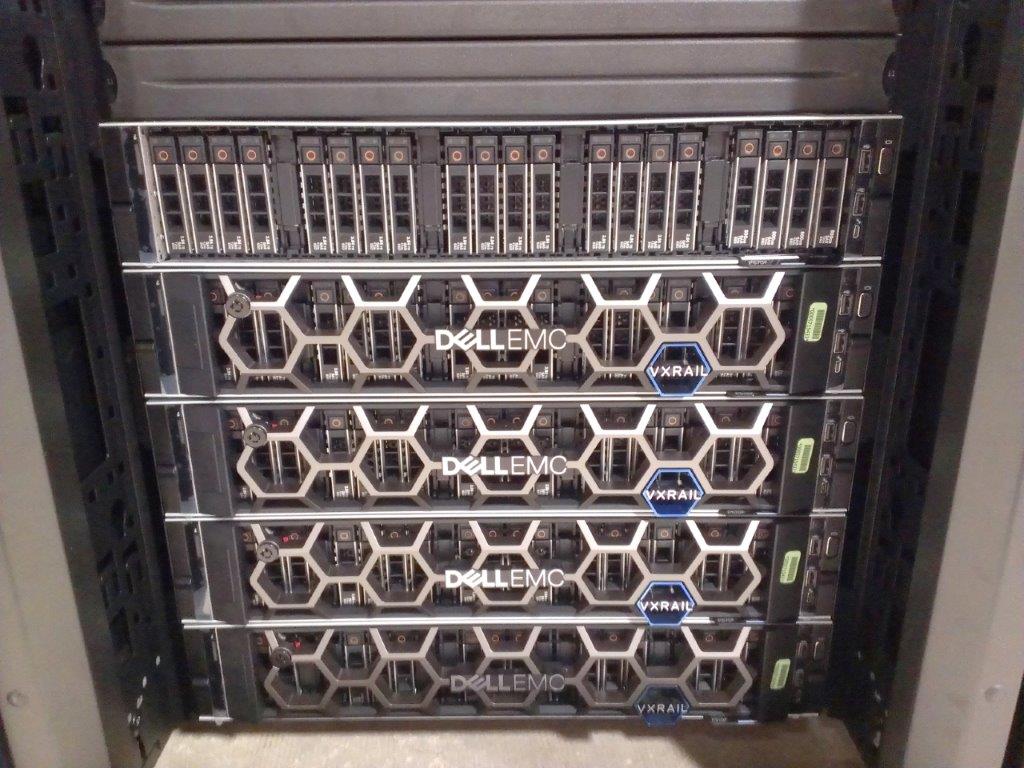

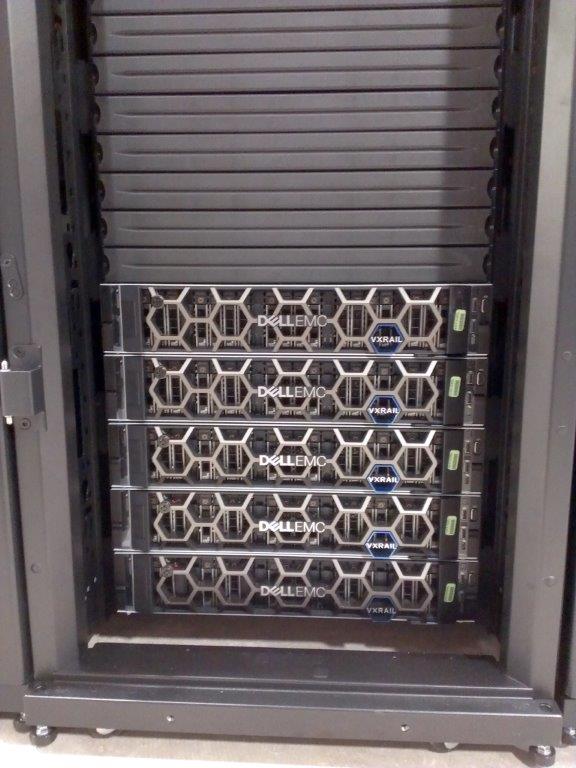

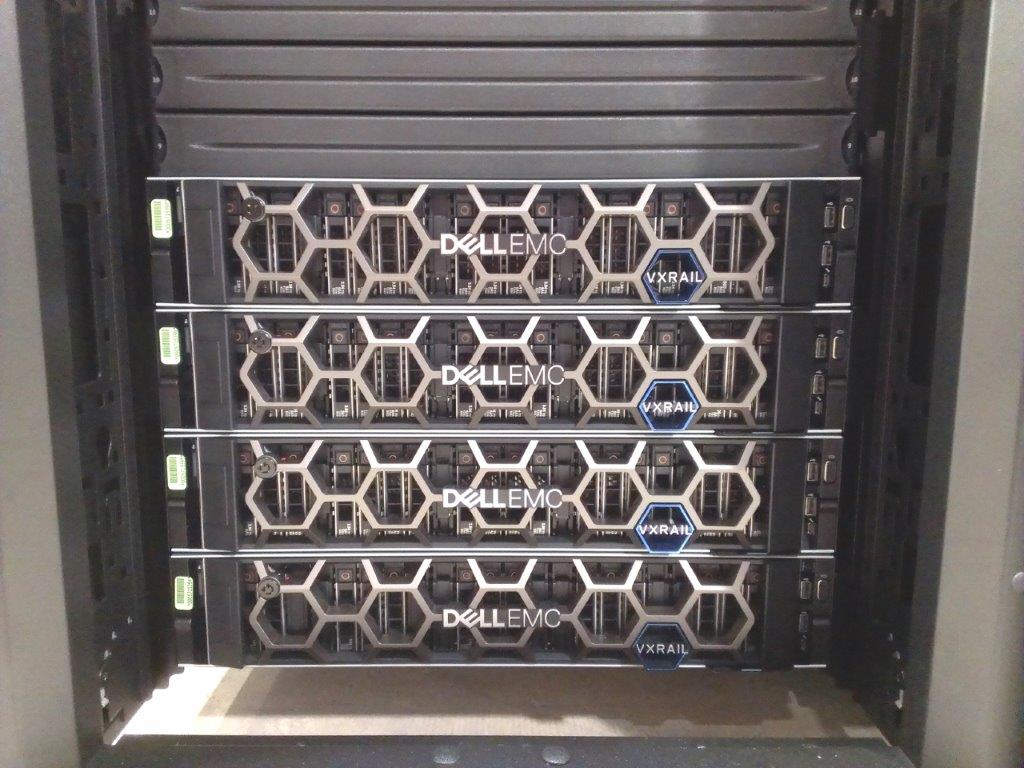

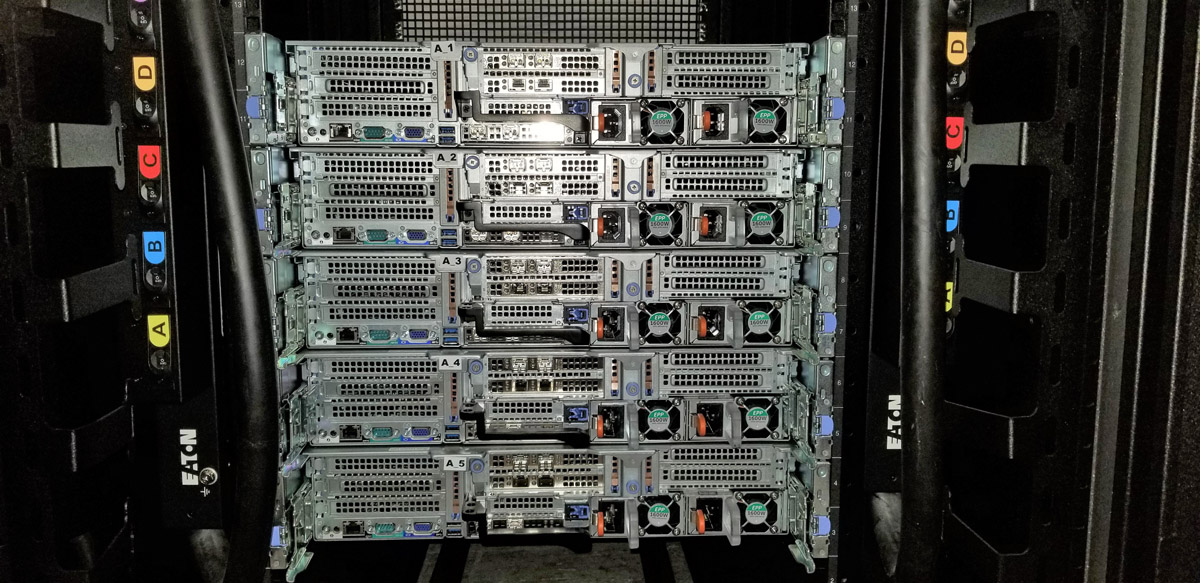

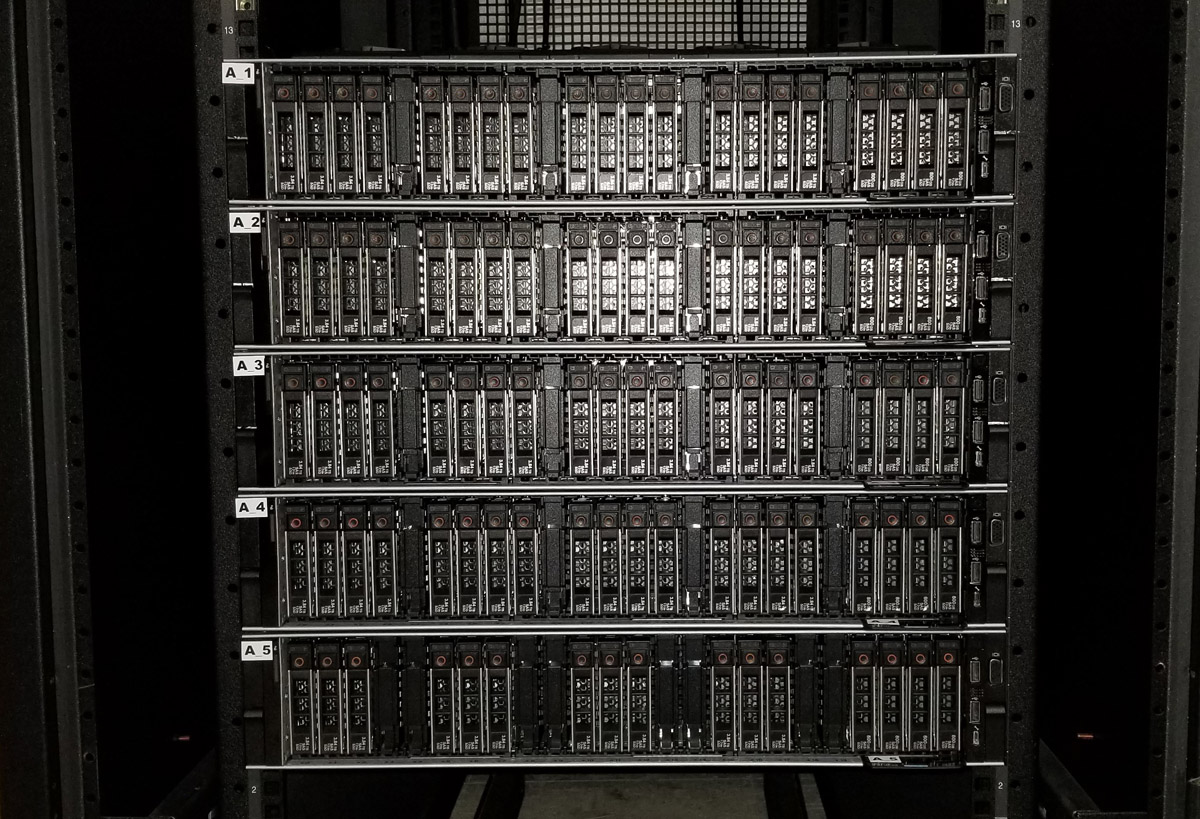

| Rack Server Model: | P570F / R740XD | 1 | EMC VxRail / Dell PowerEdge 24 x 2.5" Bay Rack Server |
| Server Motherboard | 923K0 | 1 | Dell Server Motherboard with Dual CPU |
| Backplane Board | 58D2W | 1 | Dell 24-Bay 2.5" SFF Backplane Expansion board |

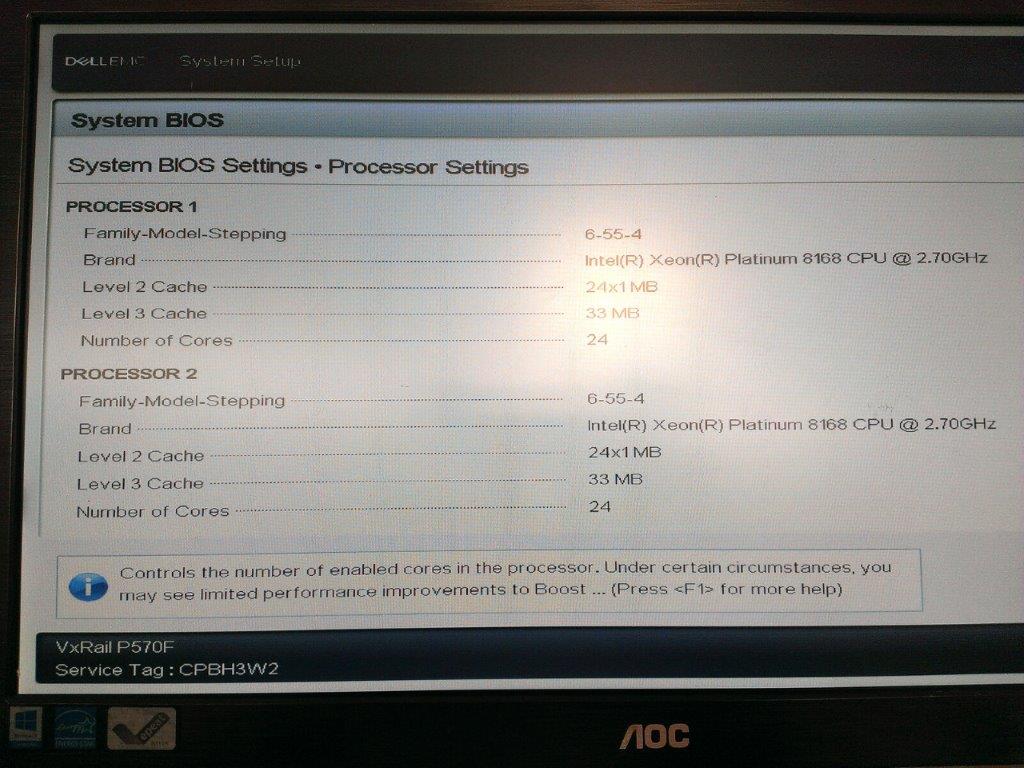

| Processor(s): | SR37J | 2 | Intel 8168 Platinum 2.7Ghz 33M 24 Core 205W CPU |
| Memory: | M386A8K40BM2-CTD7Y | 12 | Samsung 64GB 4DRx4 PC4-2666V ECC LRDIMM |
| Hard Drive(s): | N85XX / KPM5XRUG3T84 | 12 | Dell Toshiba 14G 3.84TB 2.5" SAS 12Gbps SSD |
| Hard Drive(s): | DHRVV / KPM5XMUG800G | 3 | Dell Toshiba 800GB 2.5" SAS 12Gbps SSD |
| RAID Controller: | J7TNV | 1 | Dell HBA330+ 12GB/s Perc SAS Raid Controller |
| Riser 1 Card | GHGTP | 1 | Dell Server Riser 1 Card Board |
| Riser 2 Card | J7W3K | 1 | Dell Server Riser 2 Center Card Board |
| Cooling Fan | N5T36 | 6 | Dell Server Cooling FAN |

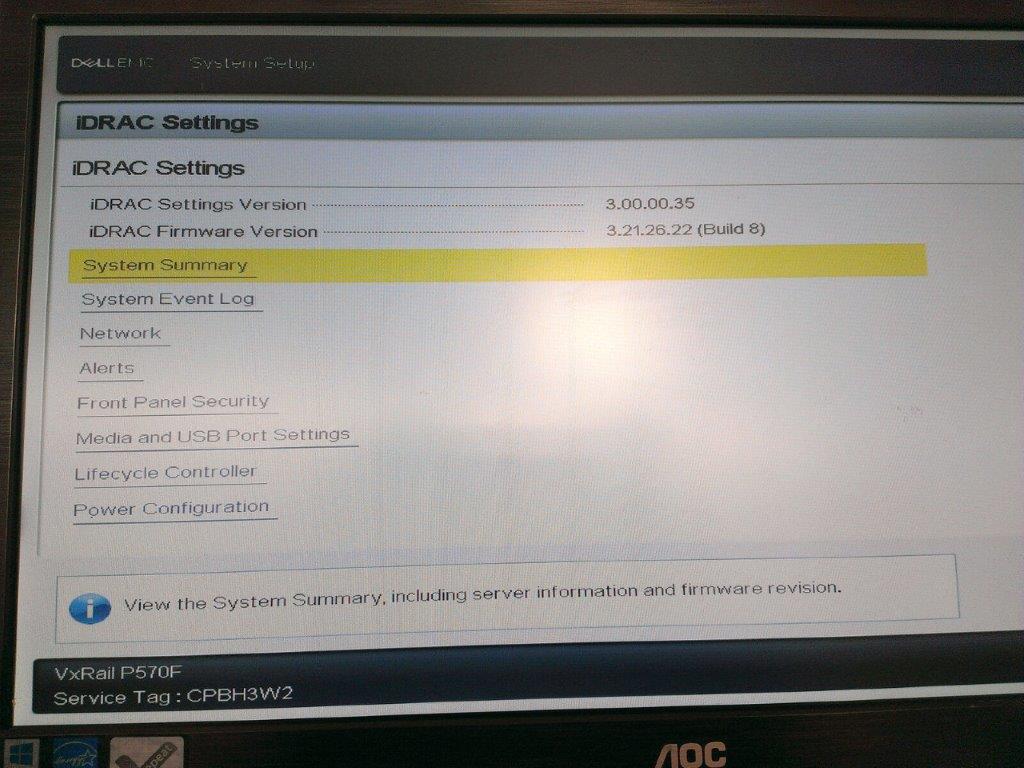

| Management: | | 1 | Idrac9 Enterprise |
| Power Supply(ies): | 95HR5 | 2 | Dell 1600W 80+ Platinum Power Supply |
| Expansion Card: | 1YGFW | 1 | Dell PowerEdge R640 R740 R940 SSD NVMe PCIe Extender adapter Card |
| Network controller | 6WMMV / 57414 | 1 | Dell Broadcom 2-Port 25GB SFP28 Network Interface Card |
| Expansion Network Card(s) | CX94X / 57414 | 2 | Dell Broadcom 2-Port 25GB SFP28 Network Interface Card |
| Netwwork GBICs | HHHHC / FTLF8536P4BNL-E5 A2 | 4 | Dell Finisar SFP28-25G-SR-85C 25GE SFP28 Ethernet Module |
| Storage Adaptor Card | M7W47 | 1 | Dell BOSS-S1 Simple Raid M.2 Full Height PCIe Controller Card |
| M.2 Solid State Drive | TC2RP / MTFDDAV240TCB | 2 | 2x Dell Micron 5100 240GB M.2 SATA 6GB/s 22x80mm |
| SD Flash Card Reader | RT6JG | 1 | Dell Dual SD Reader |
| Micro SD Card | 7XDNW | 2 | Dell PowerEdge 64GB Ultra Micro SD HC Class Card |
| Bezel: | | 1 | Included |
| Rail Kit: | | 1 | Included |
| Optical Drive: | | | Not Included |
| Dimensions: | | | 28.8 x 17.9 x 3.42 (Inches) 63 Lbs Max |
| | | |
| Configuration B | | | |
| | | |
| Rack Server Model: | P570F / R740XD | 1 | EMC VxRail / Dell PowerEdge 24 x 2.5" Bay Rack Server |
| Server Motherboard | 923K0 | 1 | Dell Server Motherboard with Dual CPU |
| Backplane Board | 58D2W | 1 | Dell 24-Bay 2.5" SFF Backplane Expansion board |
| Processor(s): | SR37J | 2 | Intel 8168 Platinum 2.7Ghz 33M 24 Core 205W CPU |
| Memory: | M386A8K40BM2-CTD7Y | 24 | Samsung 64GB 4DRx4 PC4-2666V ECC LRDIMM |
| Hard Drive(s): | N85XX / KPM5XRUG3T84 | 16 | Dell Toshiba 14G 3.84TB 2.5" SAS 12Gbps SSD |
| Hard Drive(s): | DHRVV / KPM5XMUG800G | 4 | Dell Toshiba 800GB 2.5" SAS 12Gbps SSD |
| RAID Controller: | J7TNV | 1 | Dell HBA330+ 12GB/s Perc SAS Raid Controller |
| Riser 1 Card | GHGTP | 1 | Dell Server Riser 1 Card Board |
| Riser 2 Card | J7W3K | 1 | Dell Server Riser 2 Center Card Board |
| Cooling Fan | N5T36 | 6 | Dell Server Cooling FAN |
| Management: | | 1 | Idrac9 Enterprise |
| Power Supply(ies): | 95HR5 | 2 | Dell 1600W 80+ Platinum Power Supply |
| Expansion Card: | 1YGFW | 1 | Dell PowerEdge R640 R740 R940 SSD NVMe PCIe Extender adapter Card |
| Network controller | 6WMMV / 57414 | 1 | Dell Broadcom 2-Port 25GB SFP28 Network Interface Card |
| Expansion Network Card(s) | CX94X / 57414 | 2 | Dell Broadcom 2-Port 25GB SFP28 Network Interface Card |
| Netwwork GBICs | HHHHC / FTLF8536P4BNL-E5 A2 | 4 | Dell Finisar SFP28-25G-SR-85C 25GE SFP28 Ethernet Module |
| Storage Adaptor Card | M7W47 | 1 | Dell BOSS-S1 Simple Raid M.2 Full Height PCIe Controller Card |
| M.2 Solid State Drive | TC2RP / MTFDDAV240TCB | 2 | Dell Micron 5100 240GB M.2 SATA 6GB/s 22x80mm |
| SD Flash Card Reader | RT6JG | 1 | Dell Dual SD Reader |
| Micro SD Card | 7XDNW | 2 | Dell PowerEdge 64GB Ultra Micro SD HC Class Card |
| Bezel: | | 1 | Included |
| Rail Kit: | | 1 | Included |
| Optical Drive: | | | Not Included |
| Dimensions: | | | 28.8 x 17.9 x 3.42 (Inches) 63 Lbs Max |
