RayVio
Negotiated Sale (Buy Now) followed by Global Online Auction

Oct 30 - 31, 2019

Extremely Late-Model, High-End Semiconductor Deposition Tools, Incredible Offering!!

Hayward, CA

Register for Auction View Catalog

Sale Details

  • Auction Opens: October 30, 2019
  • Auction Closes: October 31, 2019
  • Asset Removal: Week of November 4, 2019
  • Sale Preview: October 29, 2019 10am to 4pm

Auctioneer Fee

  • Buyers Premium: 18%

Featured Assets

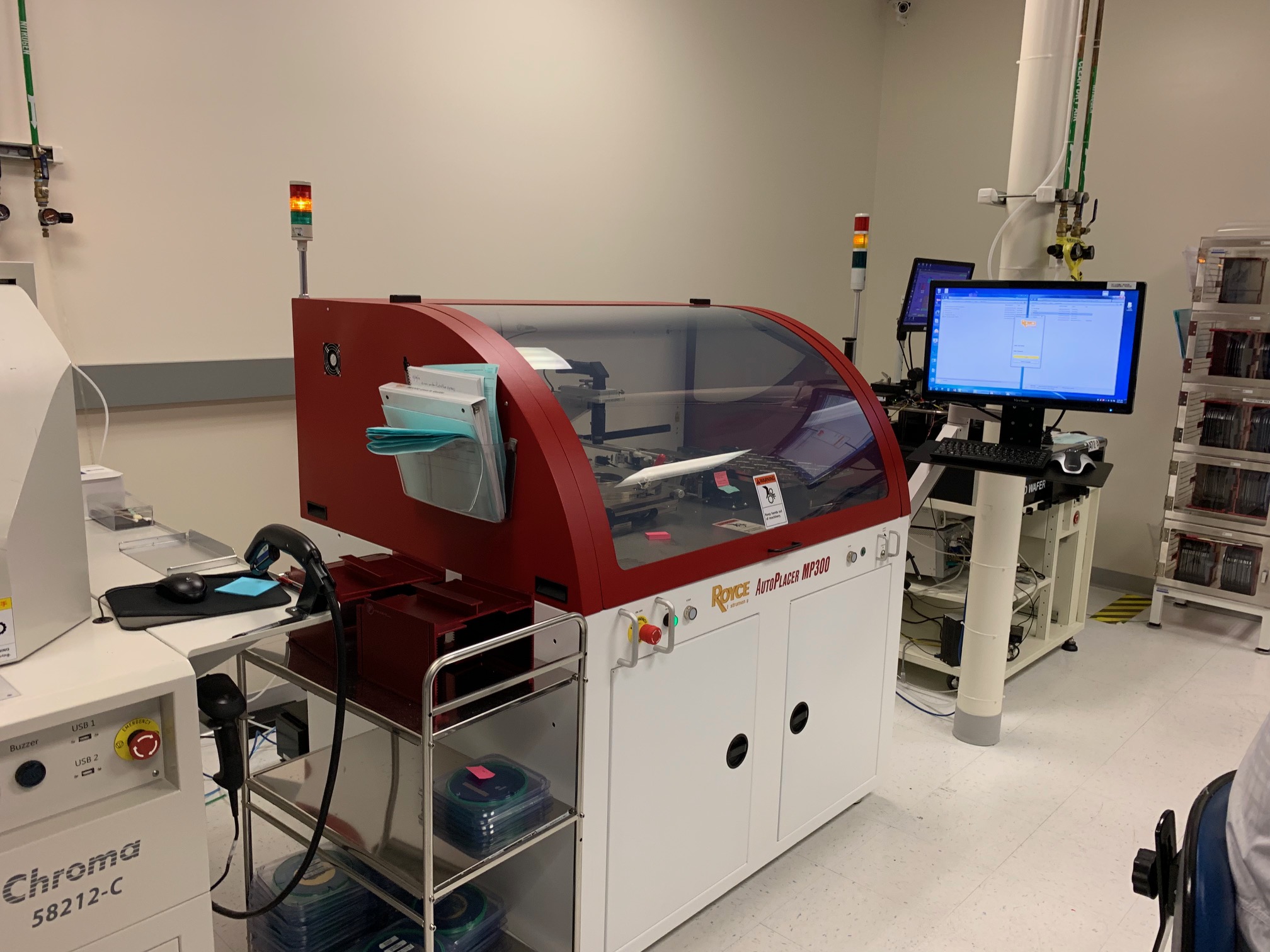

Royce Model Autoplace MP300
Wastech Acid Nuetralizer
Ocean Optics Spectrometer UV-Vis
Riber Epi Reactor (Molecular beam Epitaxial) (w/ Options Over $1,000,000)
Riber EPI Reactor (Molecular beam Epitaxial) (w/Options Over $1,000,000)

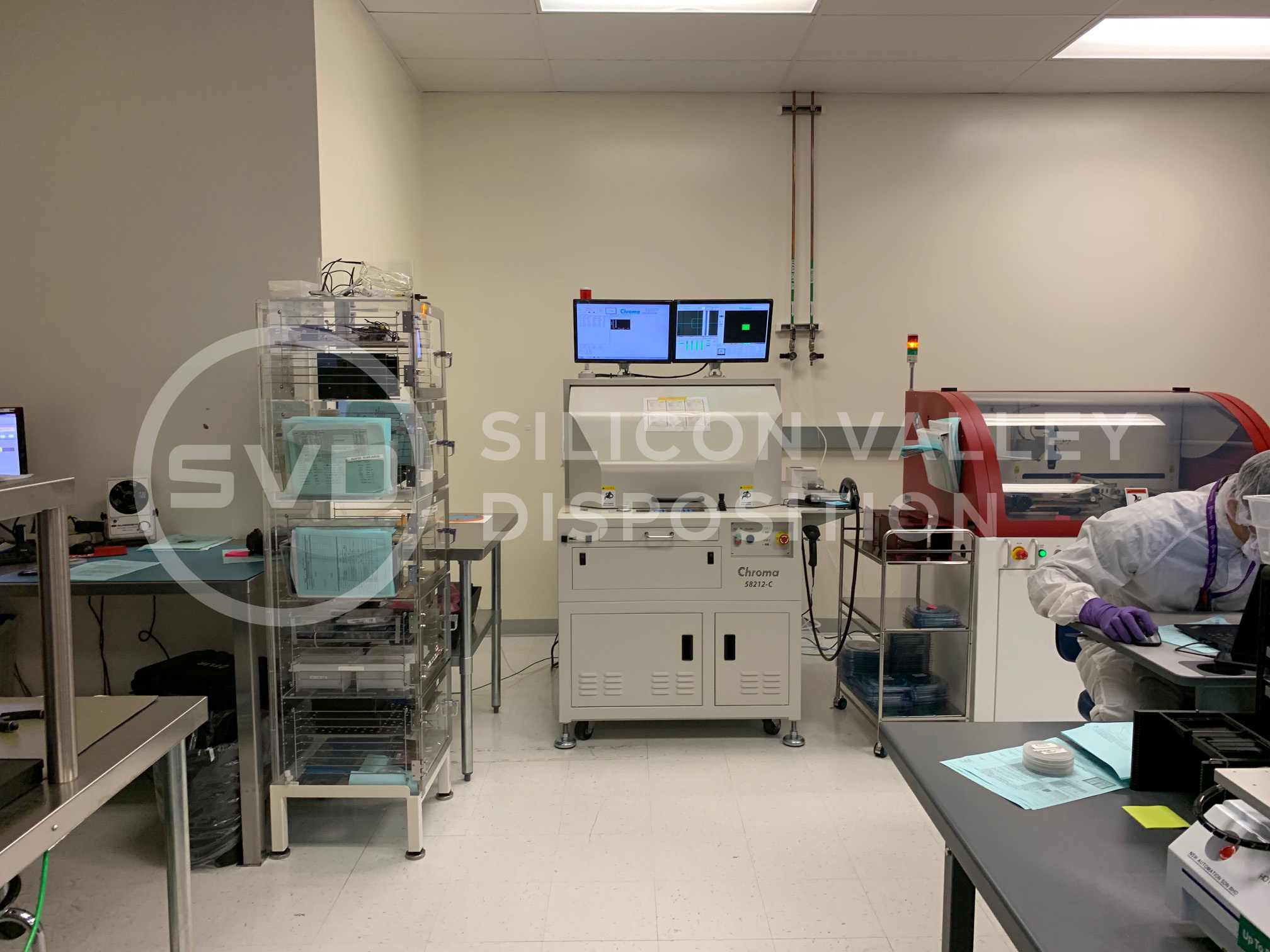

Chroma Aotoprober Model 58212-C

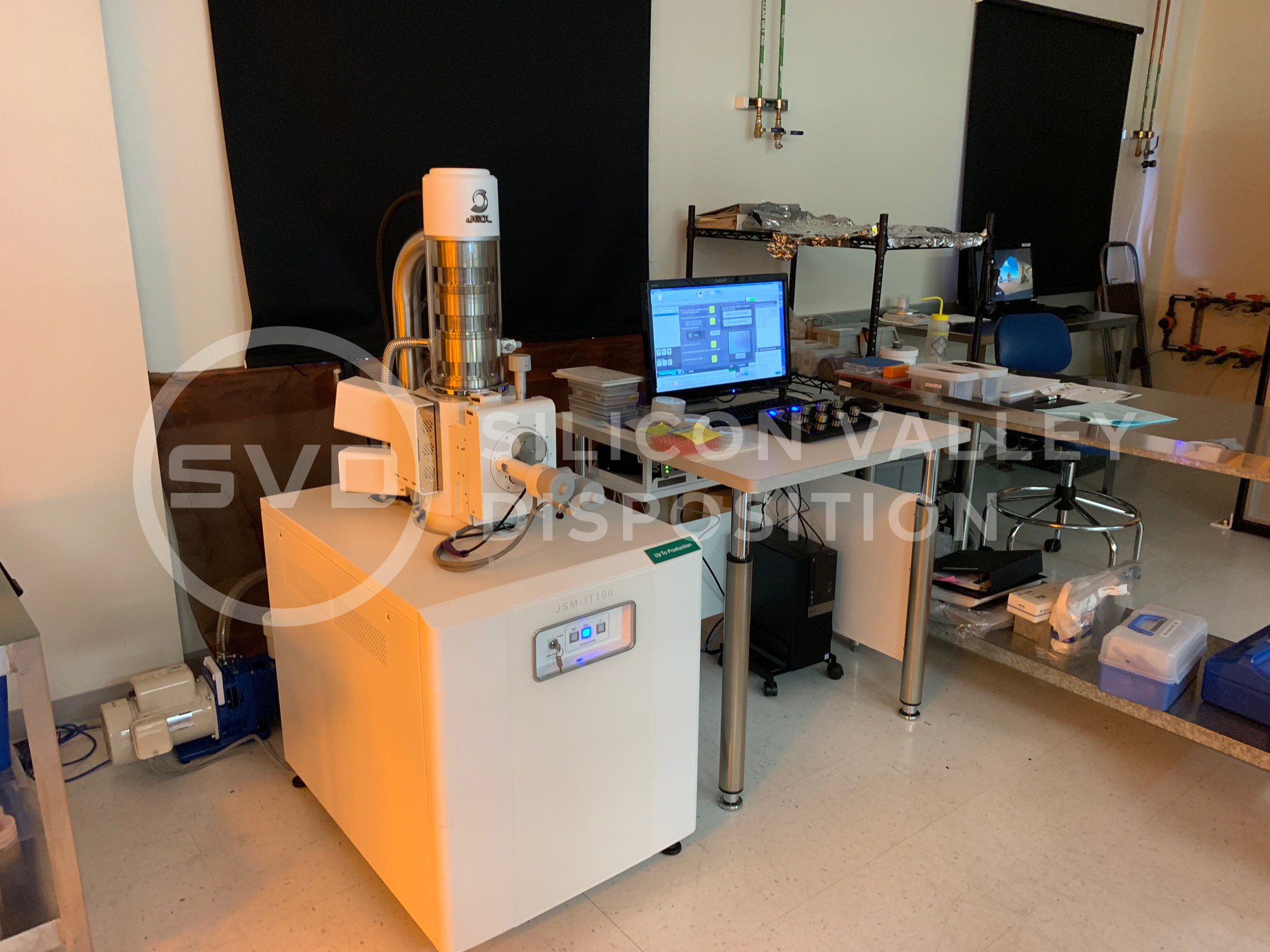

Joel Scanning Electron Microscope Model JSM-IT100

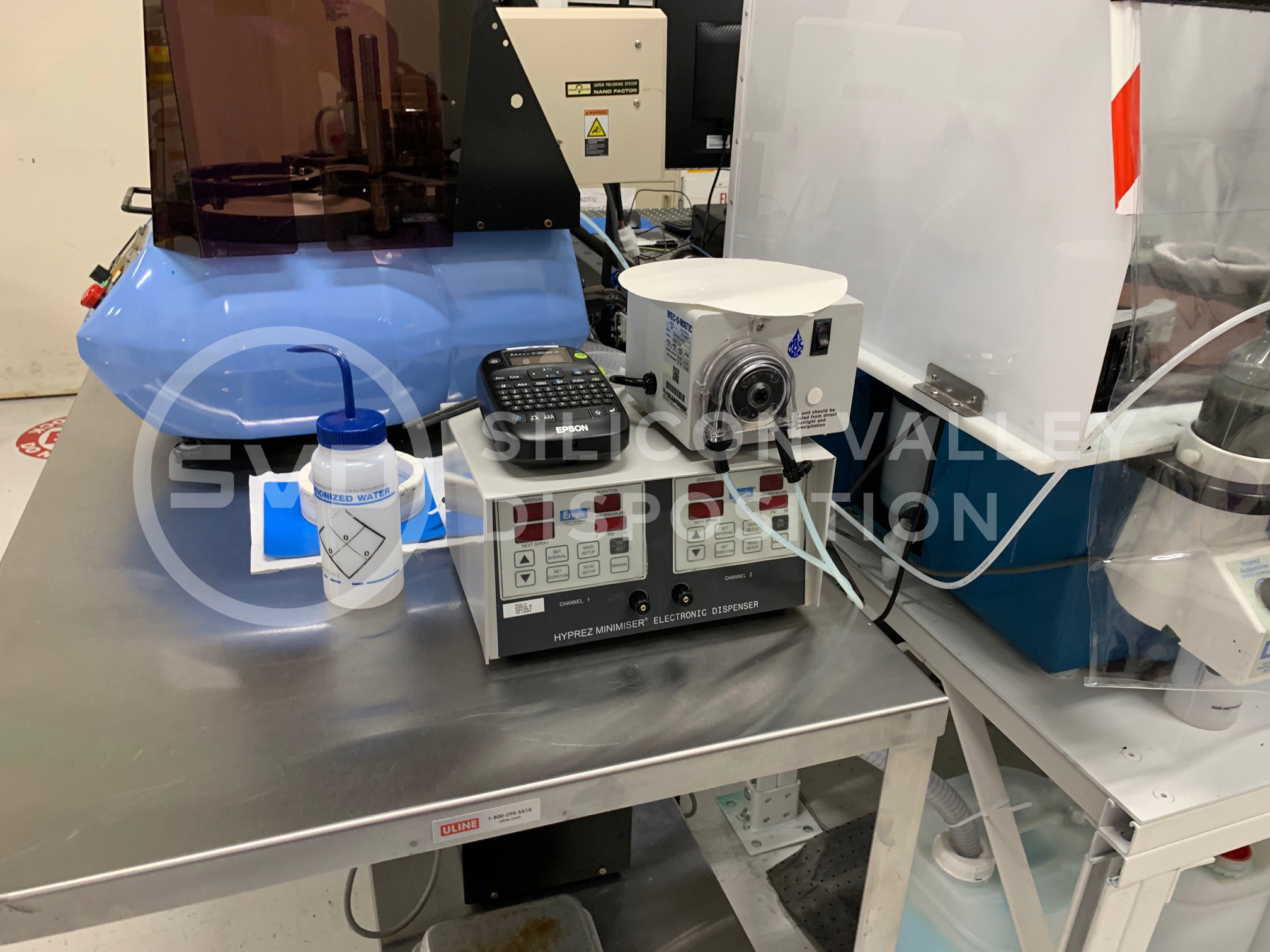

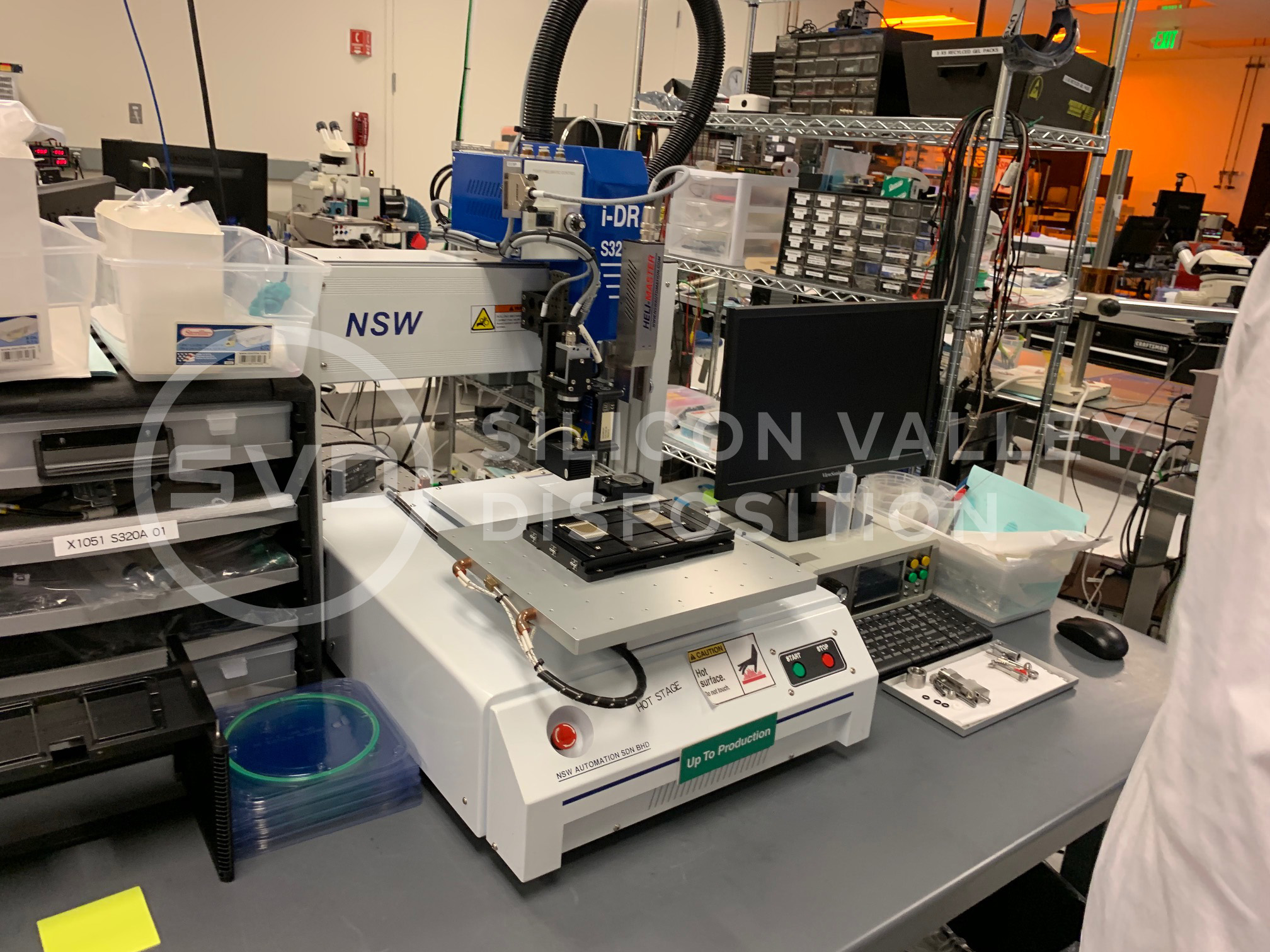

NSW Automated Dispenser

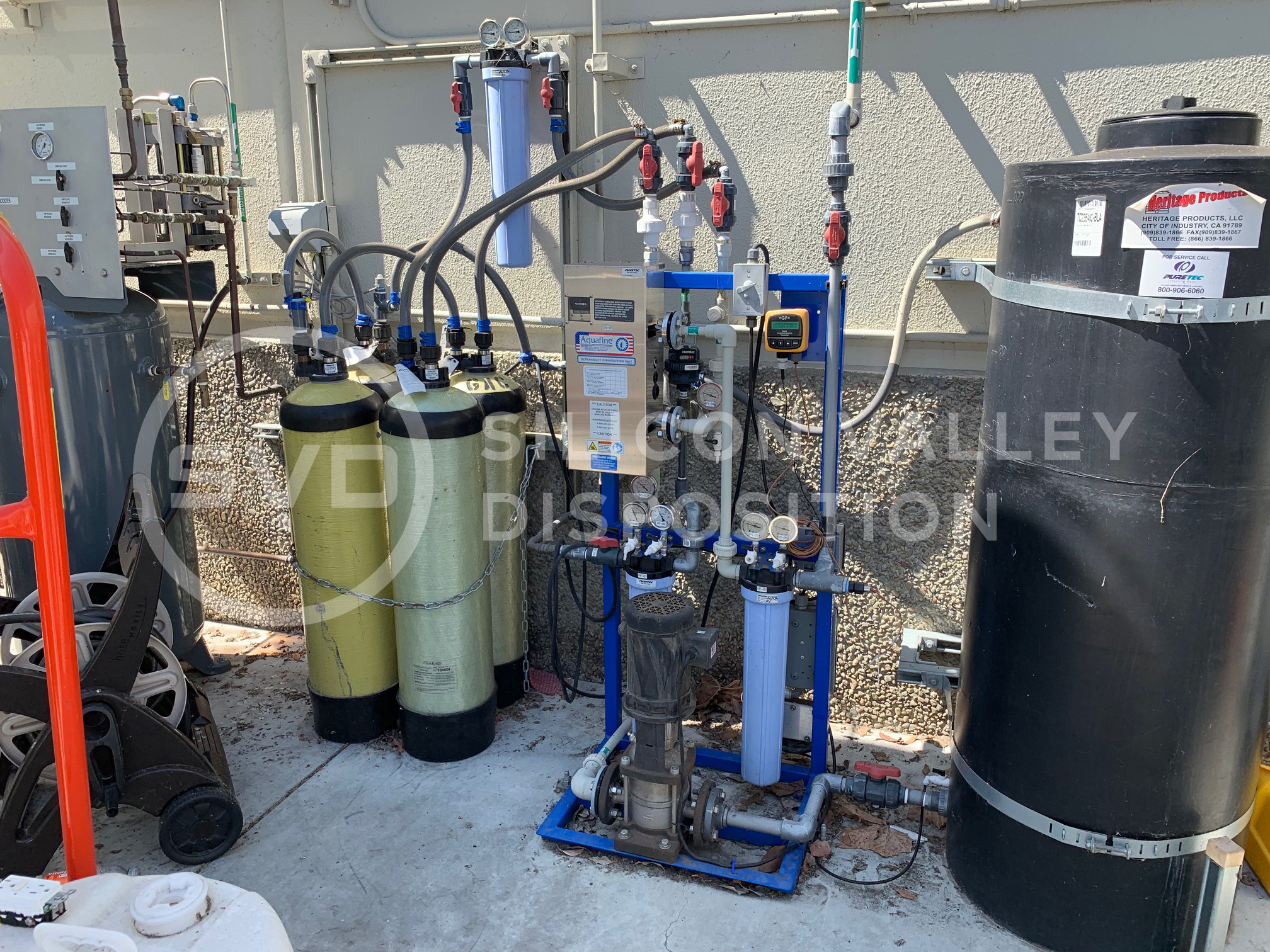

ADT Water Recycling System

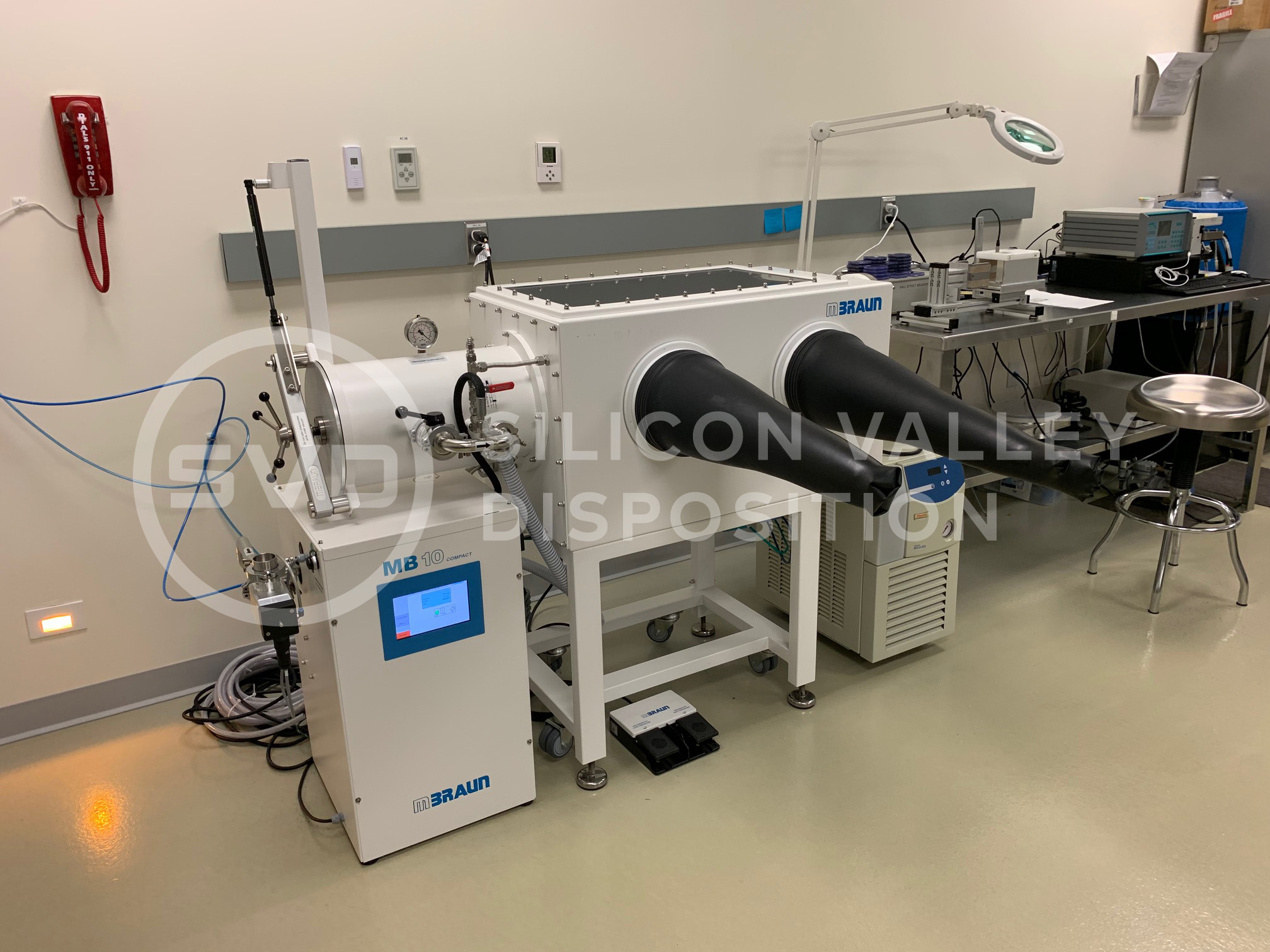

Braun Glove Box

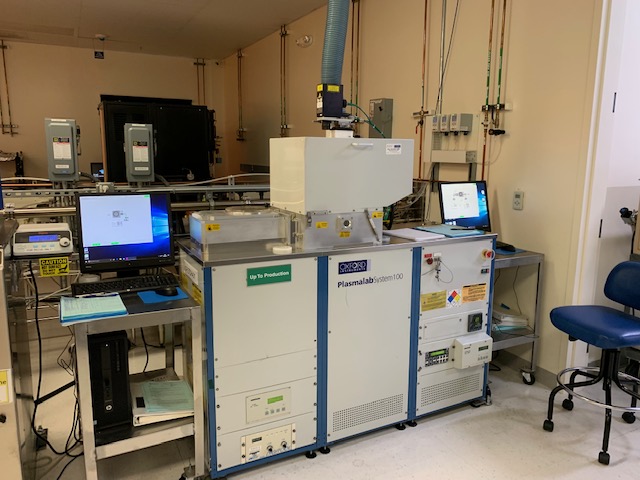

Oxford Instruments ICP Plasmalab 100

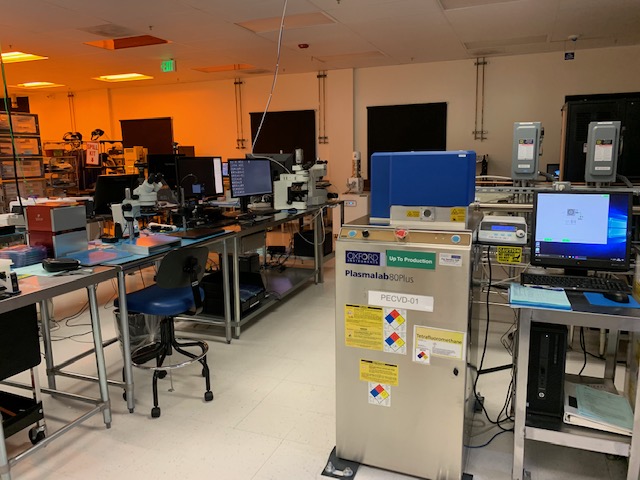

Oxford Instruments PECVD Plasmalab 80 Plus

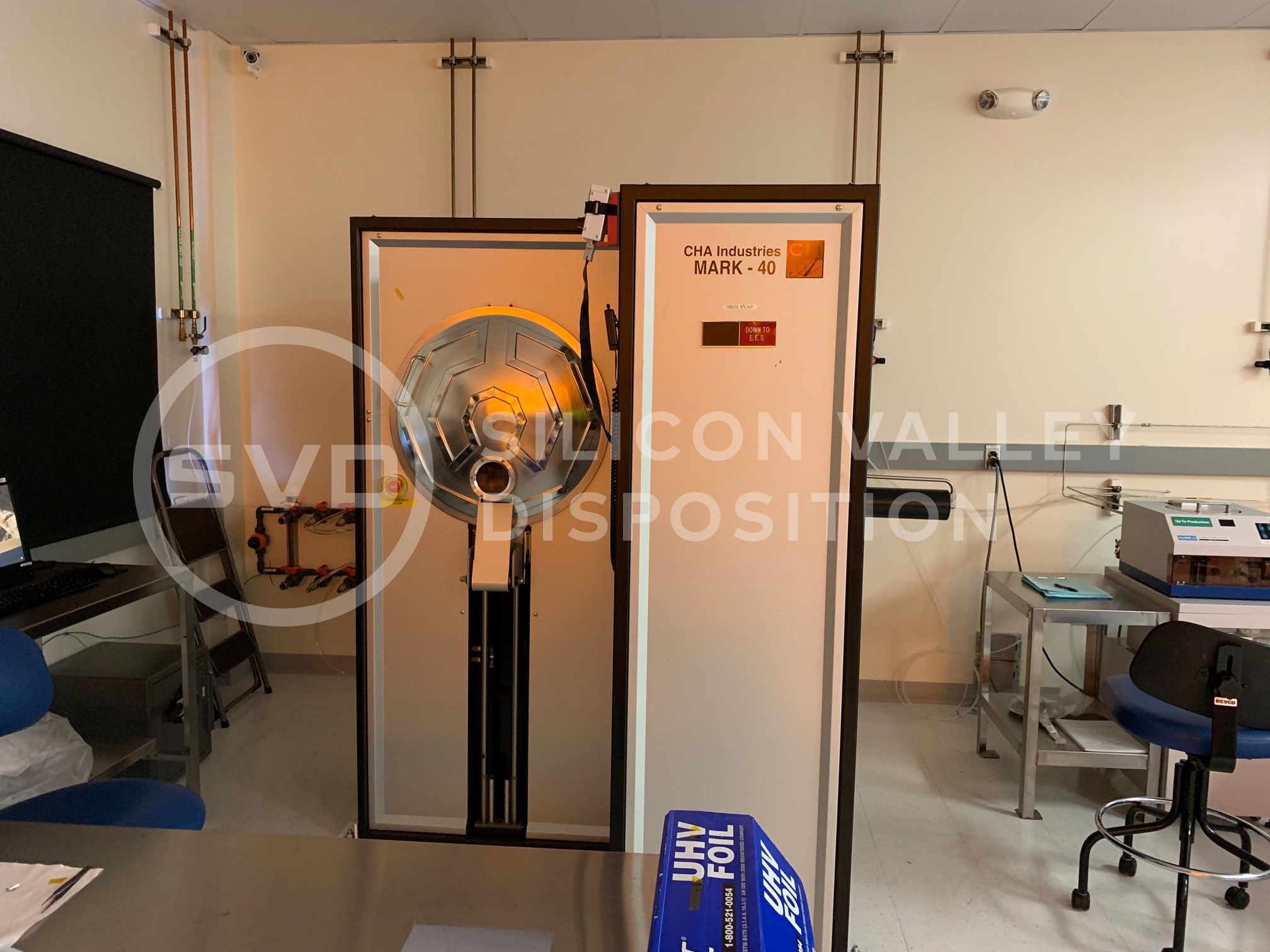

CHA Industries Mark – 40

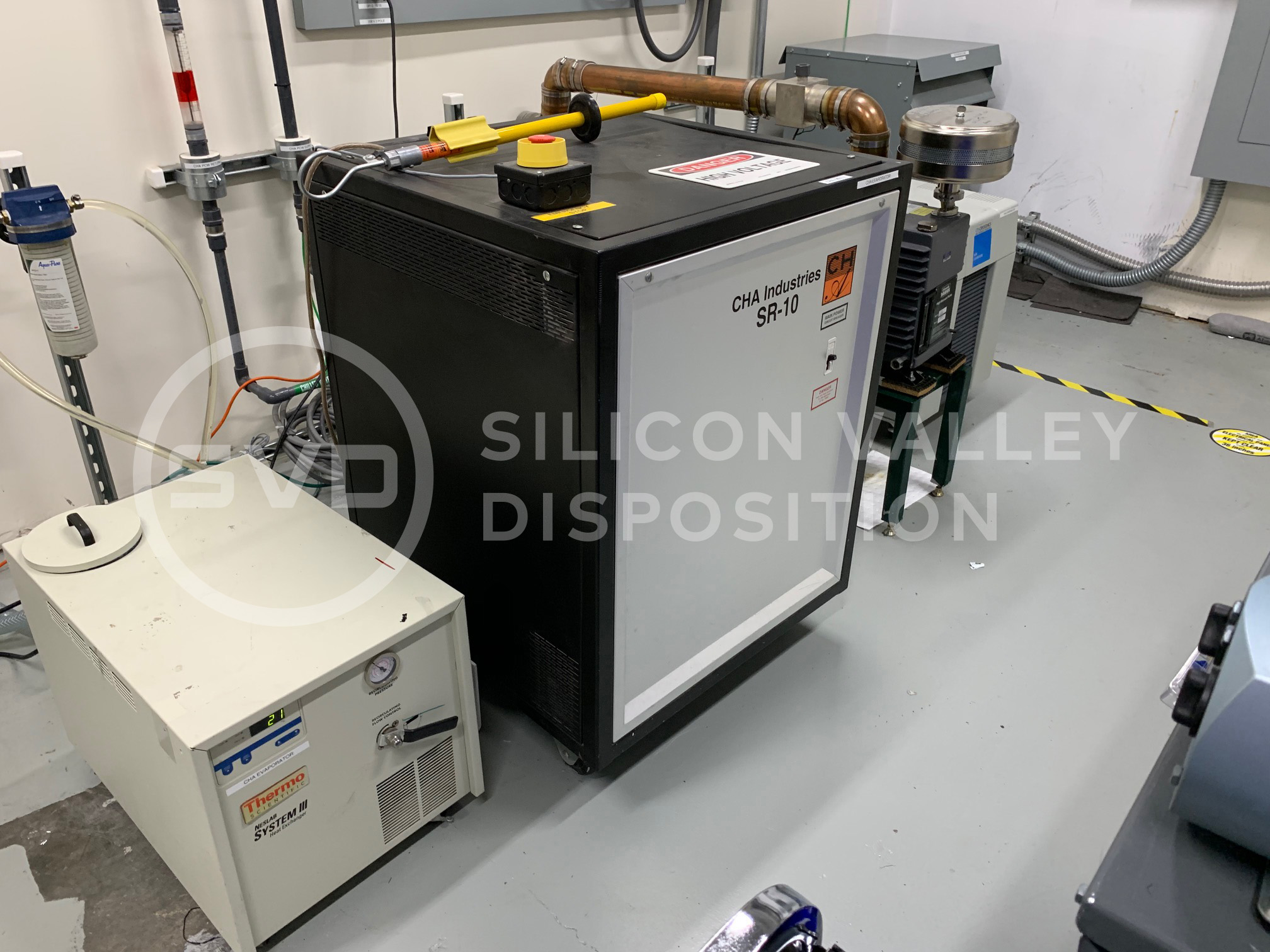

CHA Power Supply SR10
Allwin2 Accutherm AW410

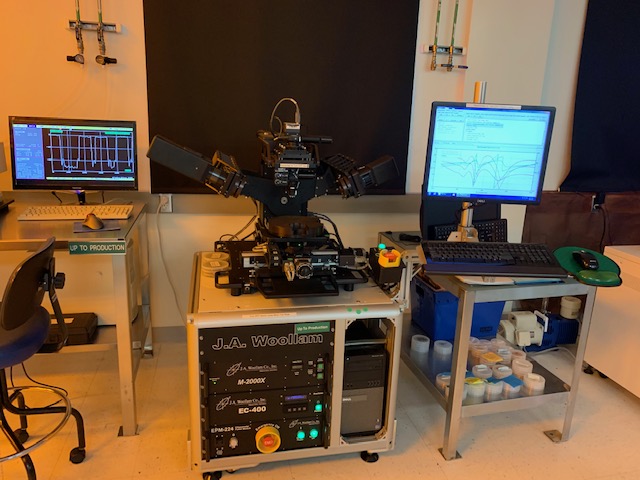

J.A. Woollam Spectroscopic Ellipsometer M-2000x
Bruker Dimension Icon Automatic Force Microscope
Jordon Valley Diffractometer Model QC Velox
(2) Karl Suss Bonders Model MA4

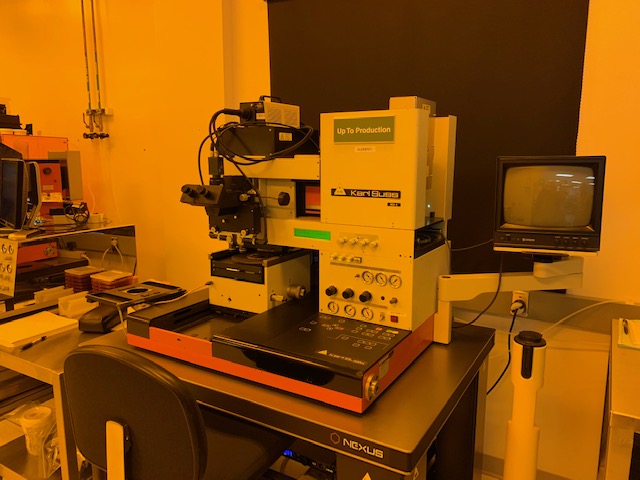

Karl Suss Model MA6

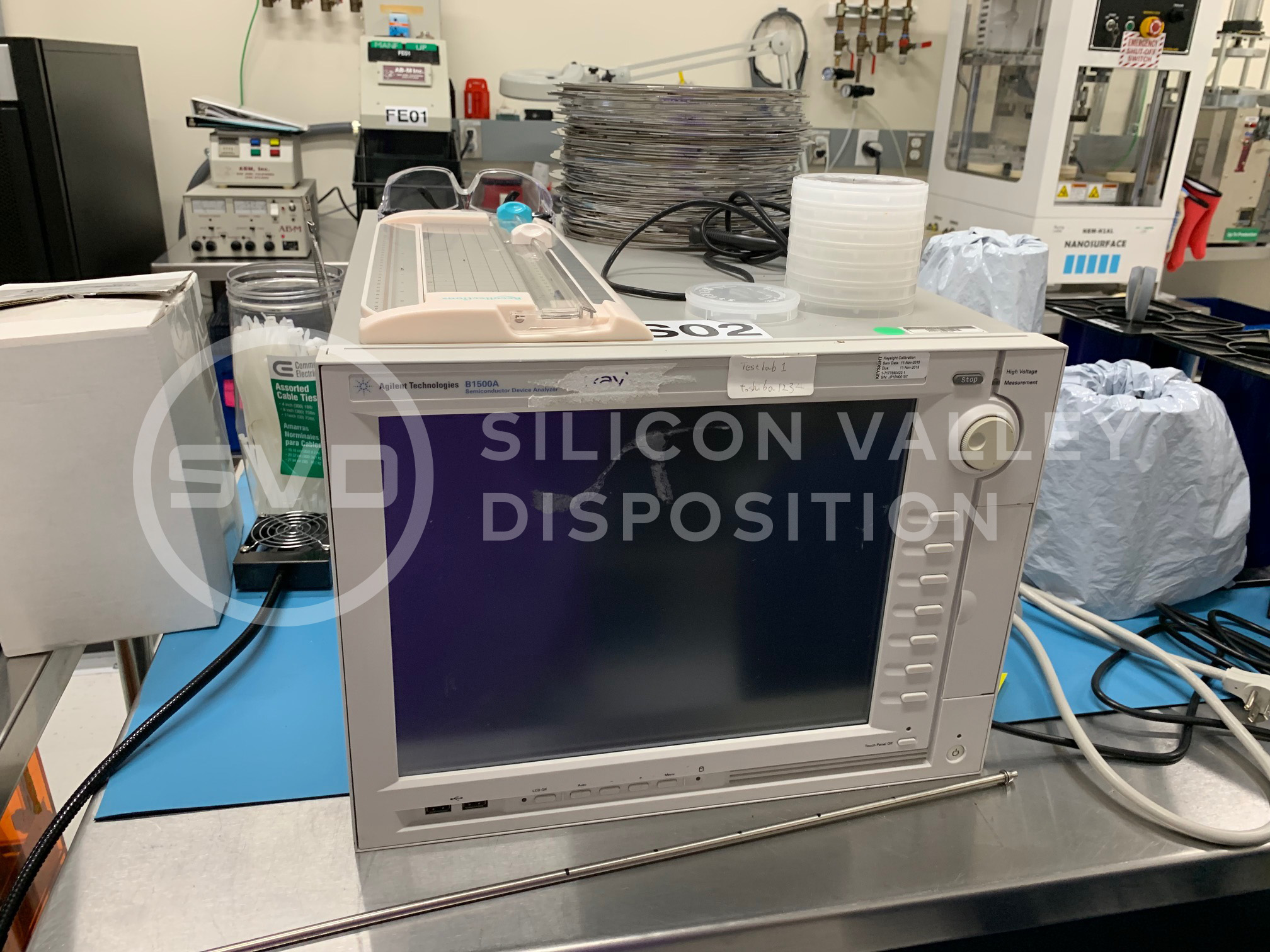

Agilent Power Analyzer/Curve Tracer Model B1505A

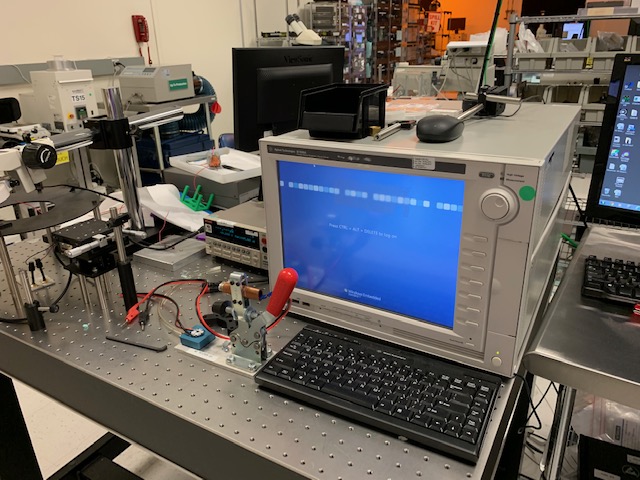

Agilent Semiconductor Device Measurement Model B1500A

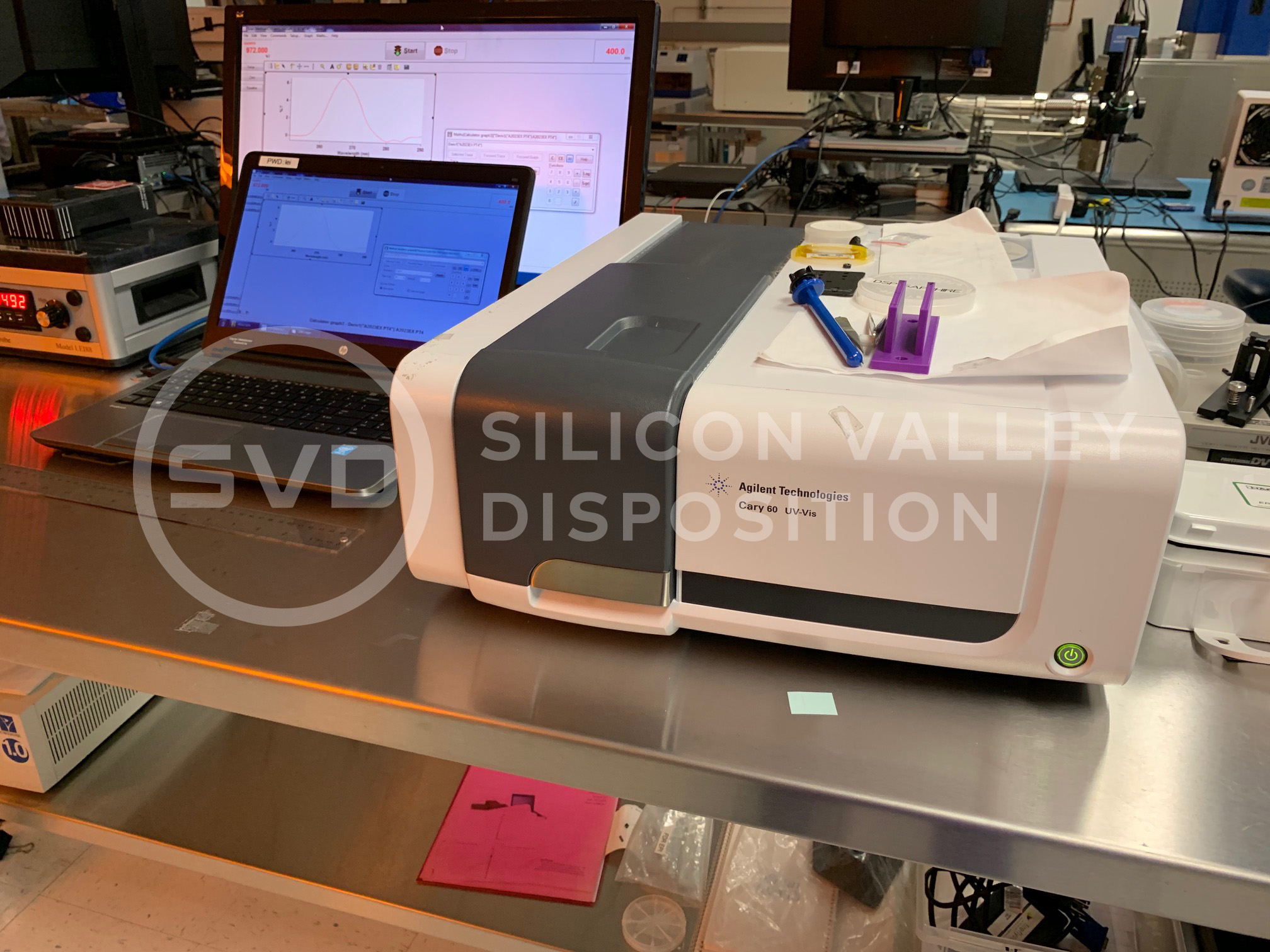

Agilent Cary 60 UV-Vis

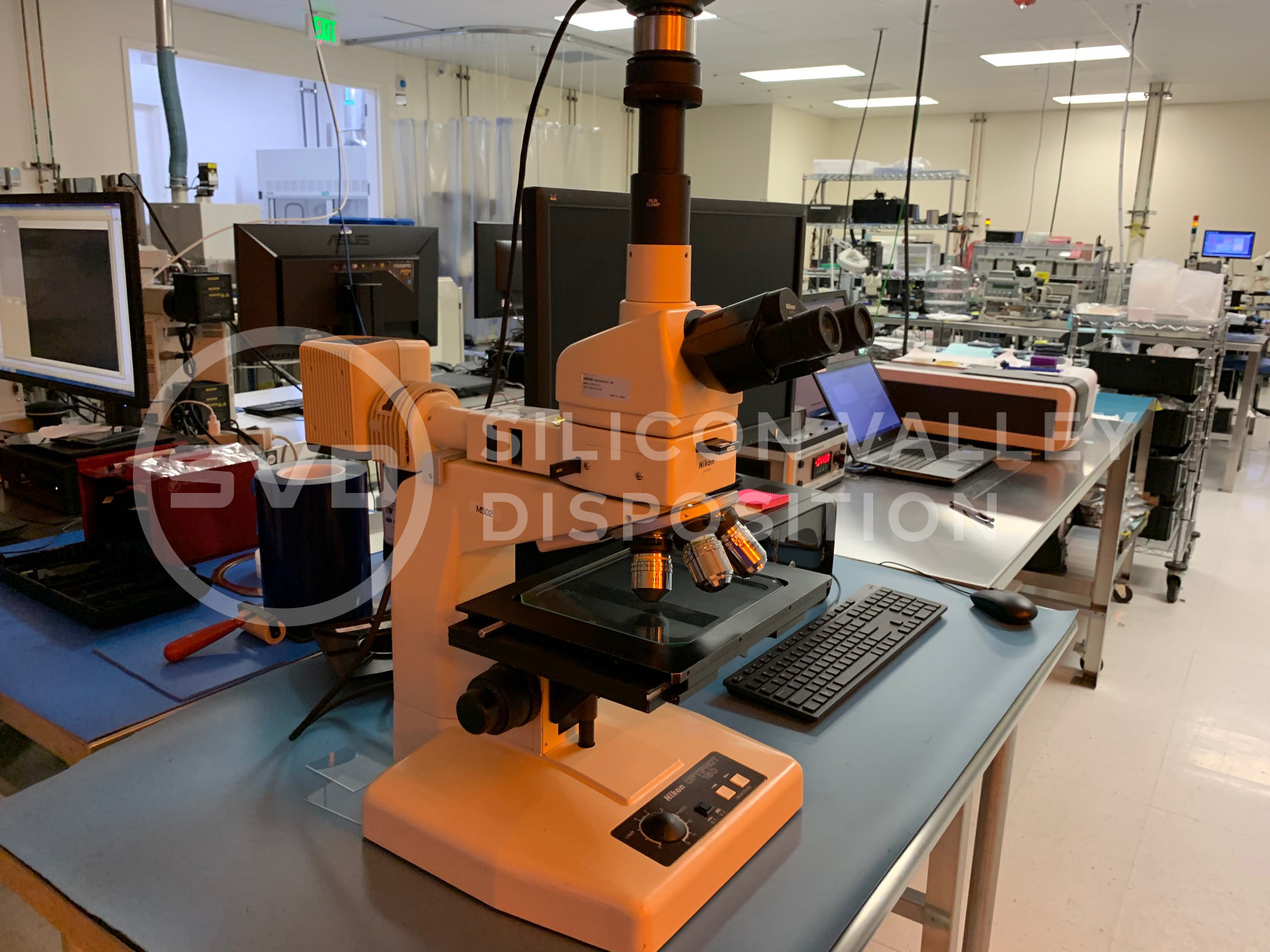

Nikon Microscope Optiphot 150

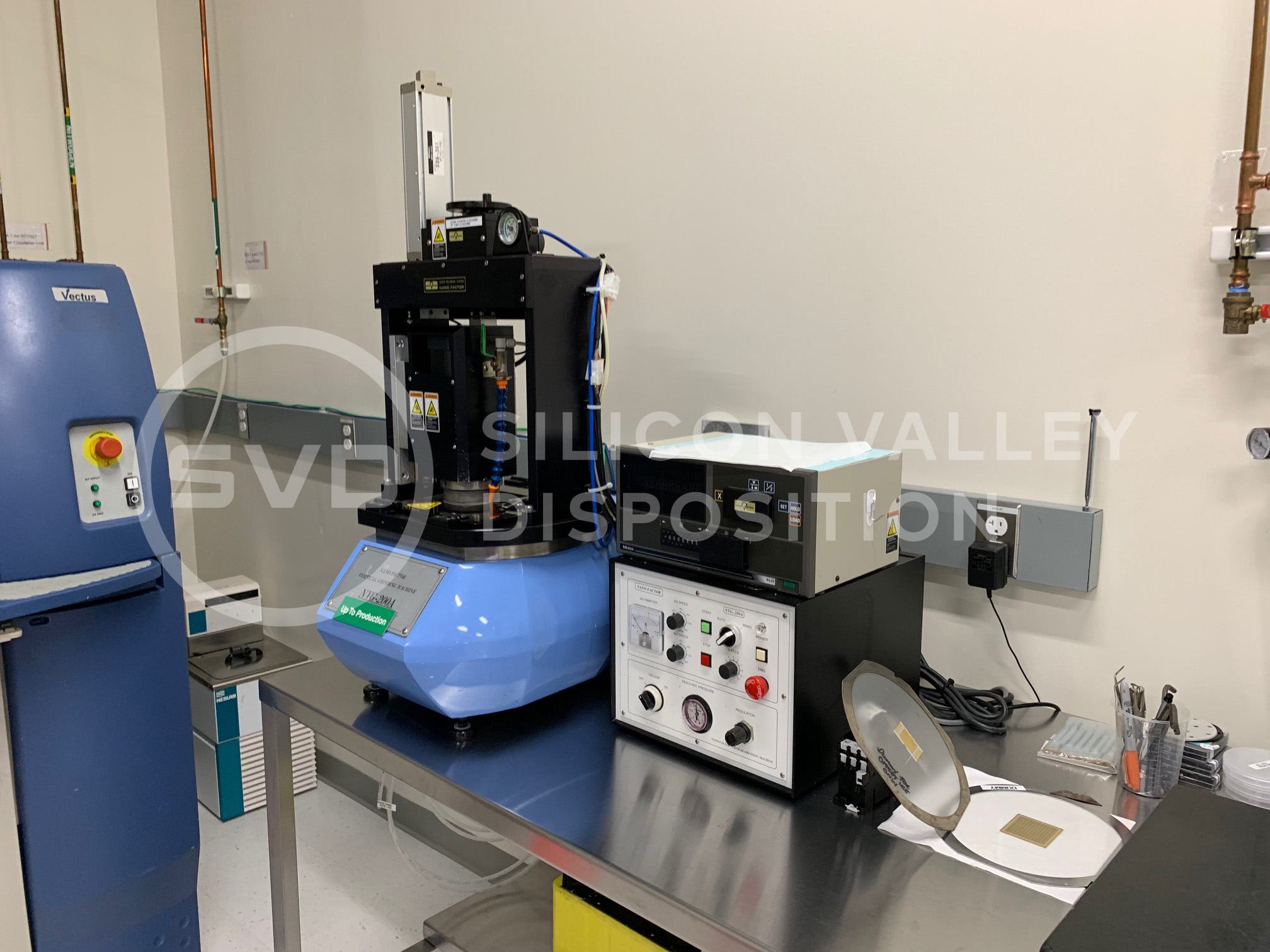

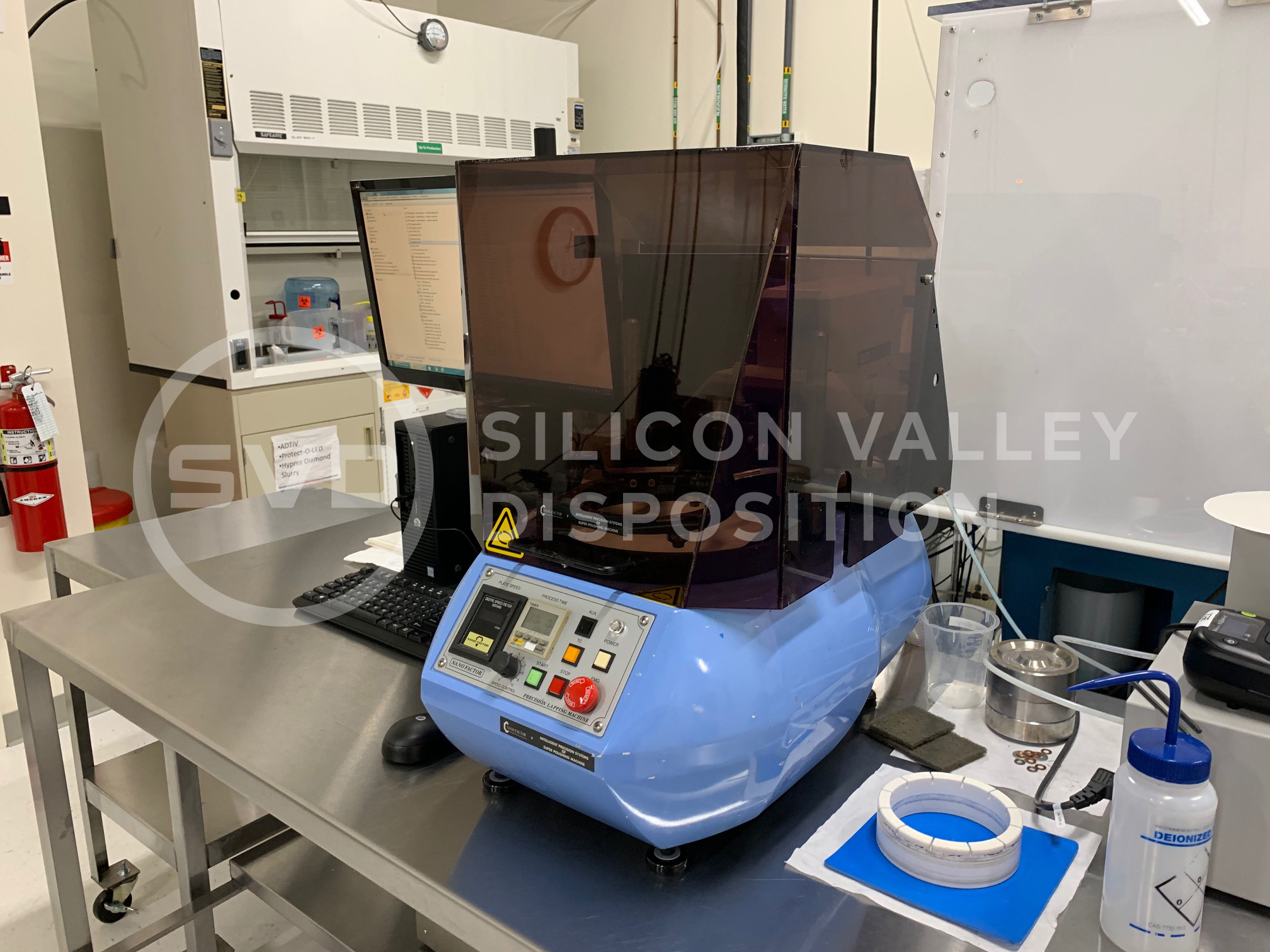

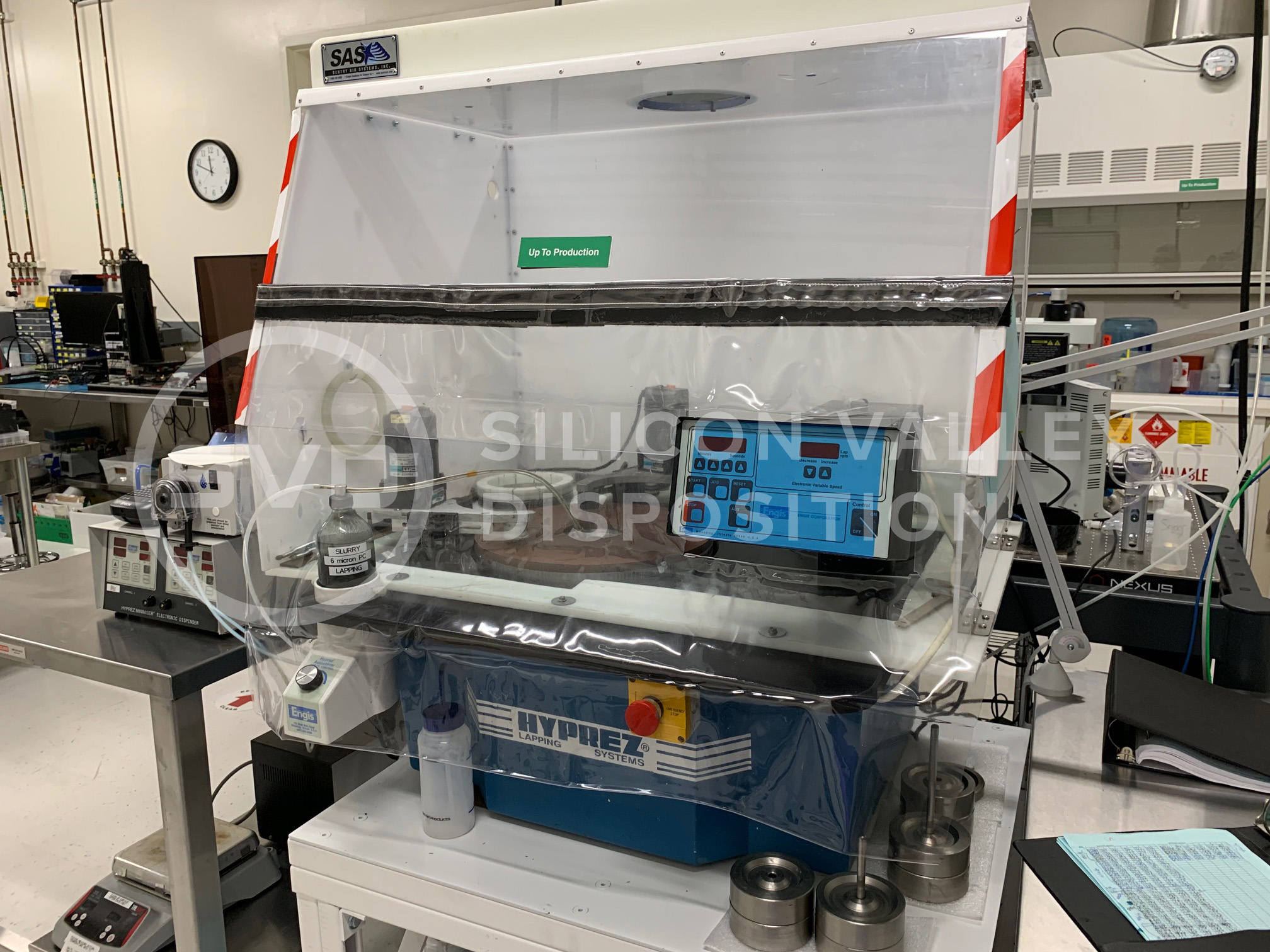

(2) Nano Factor Precision Lapping Machines

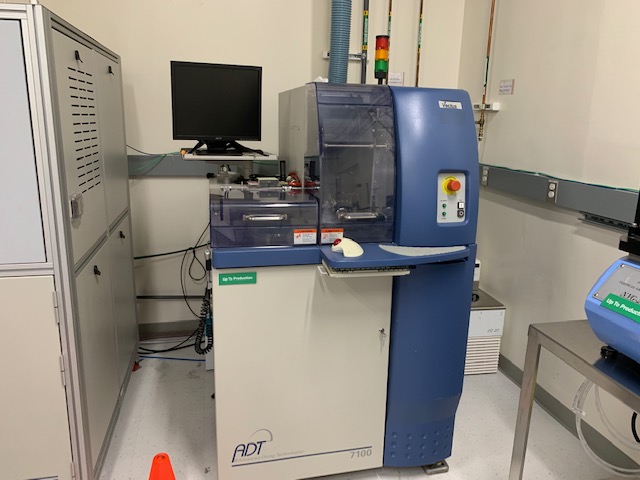

ADT Dicing Saw Model 7100
Semitool Spin Rinse Dryer
Pyrometer Lens System Model 900NM
Olympus Microscope MX61
Olympus Microscope BX51M

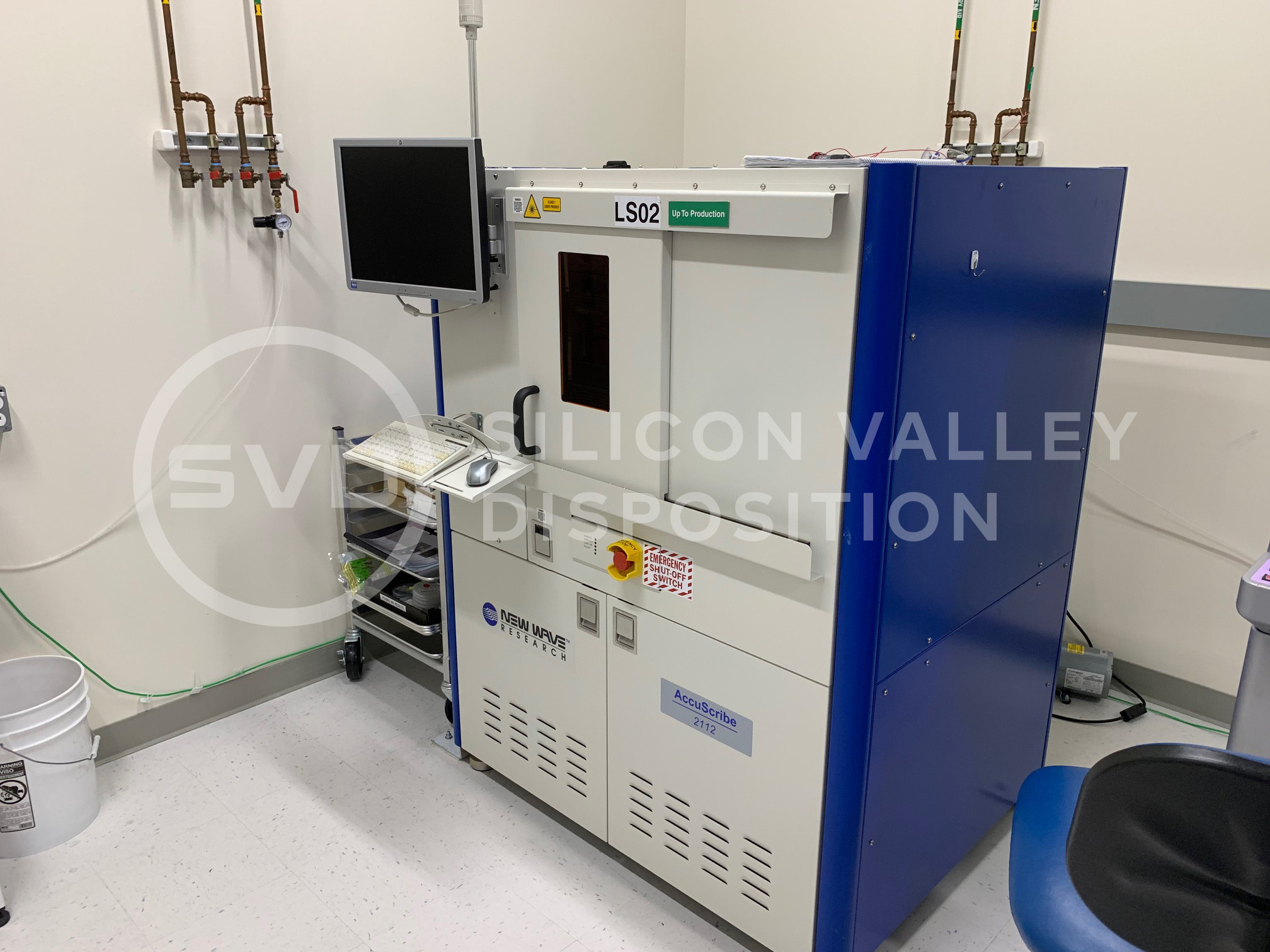

New Wave Model AccuScribe 2112

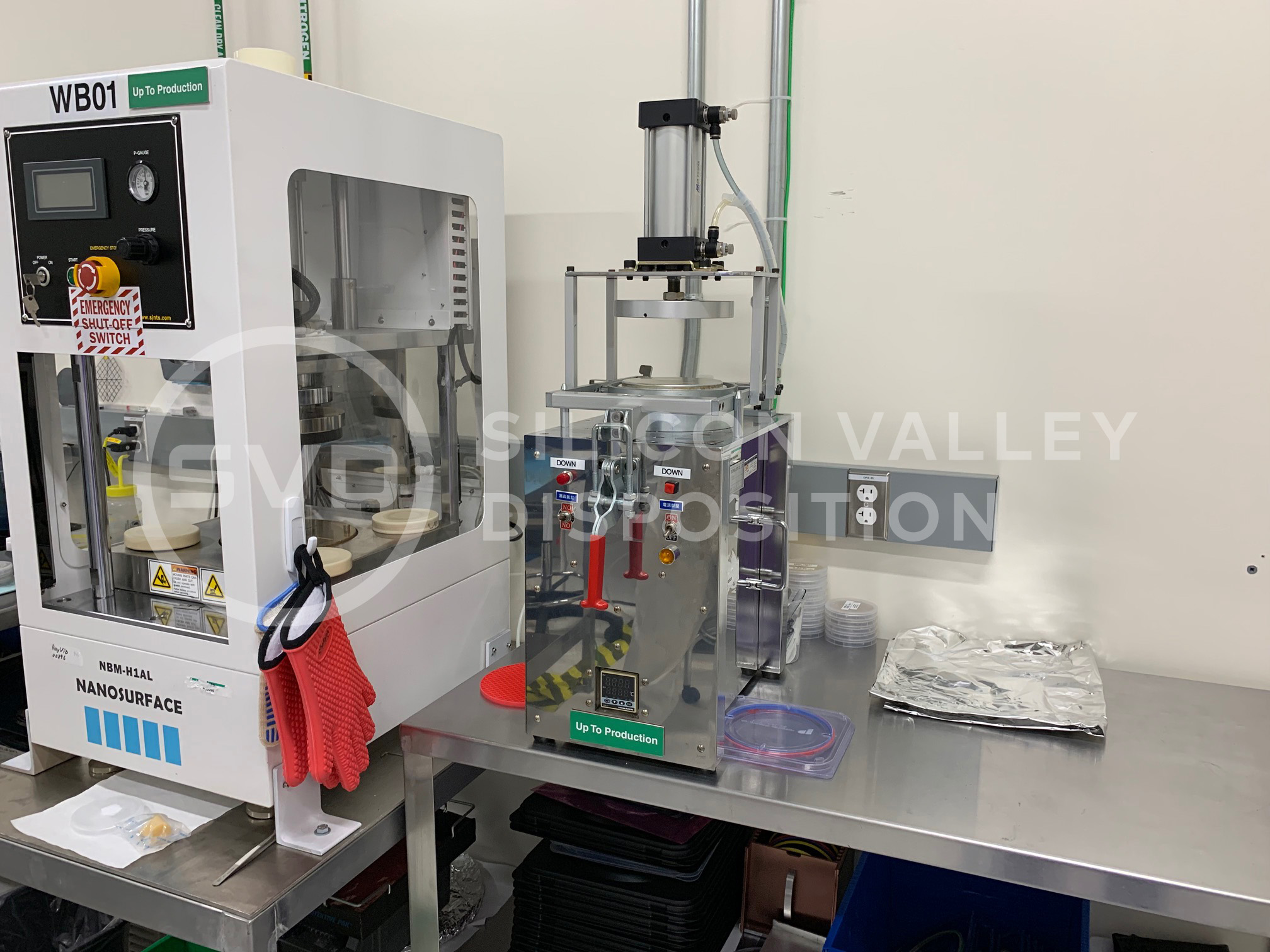

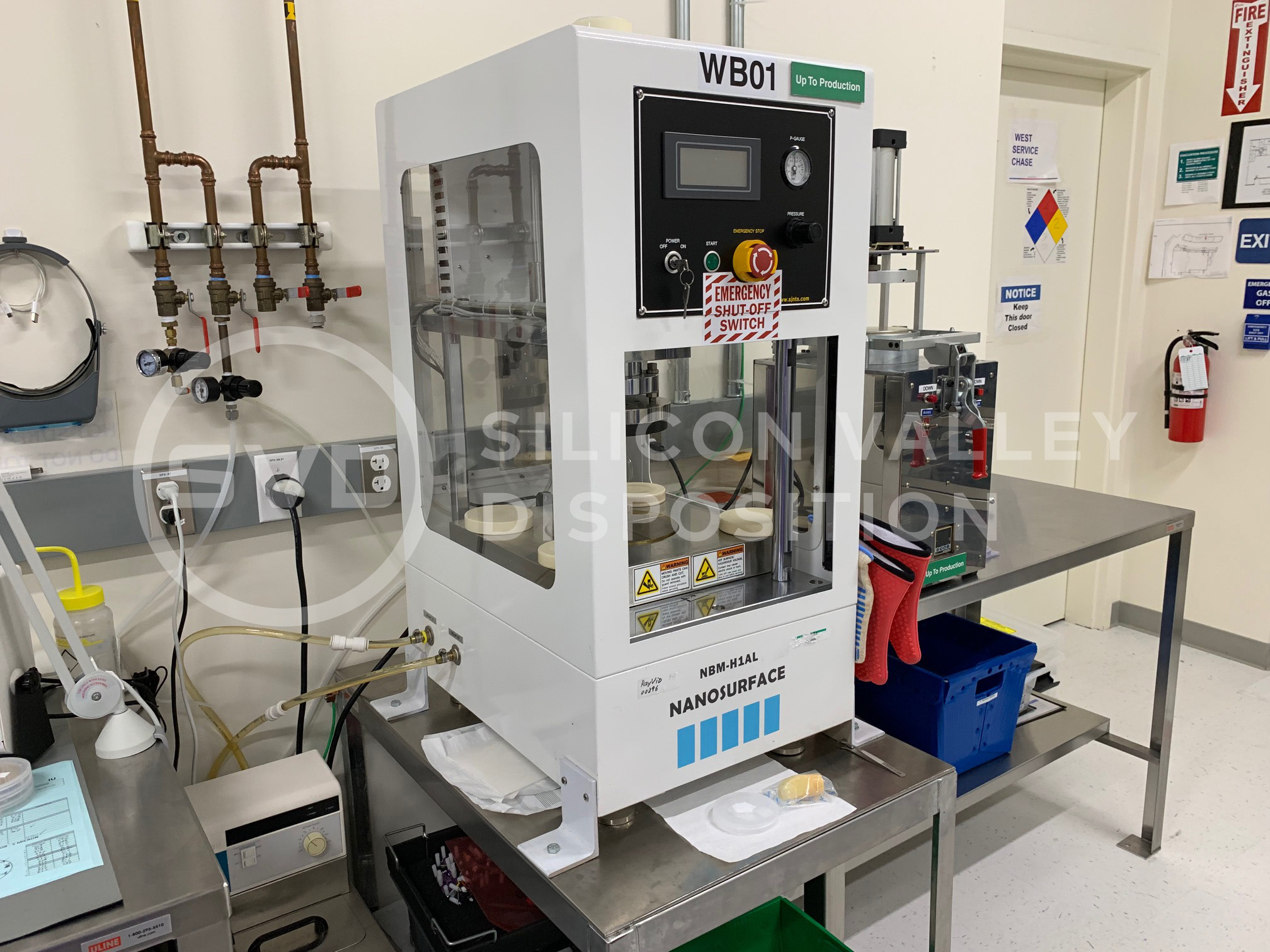

Nanosrface NBM-H1AL
Tencor Alpha Step 500
Lehighton Electronics Contactless Conductivity Probe

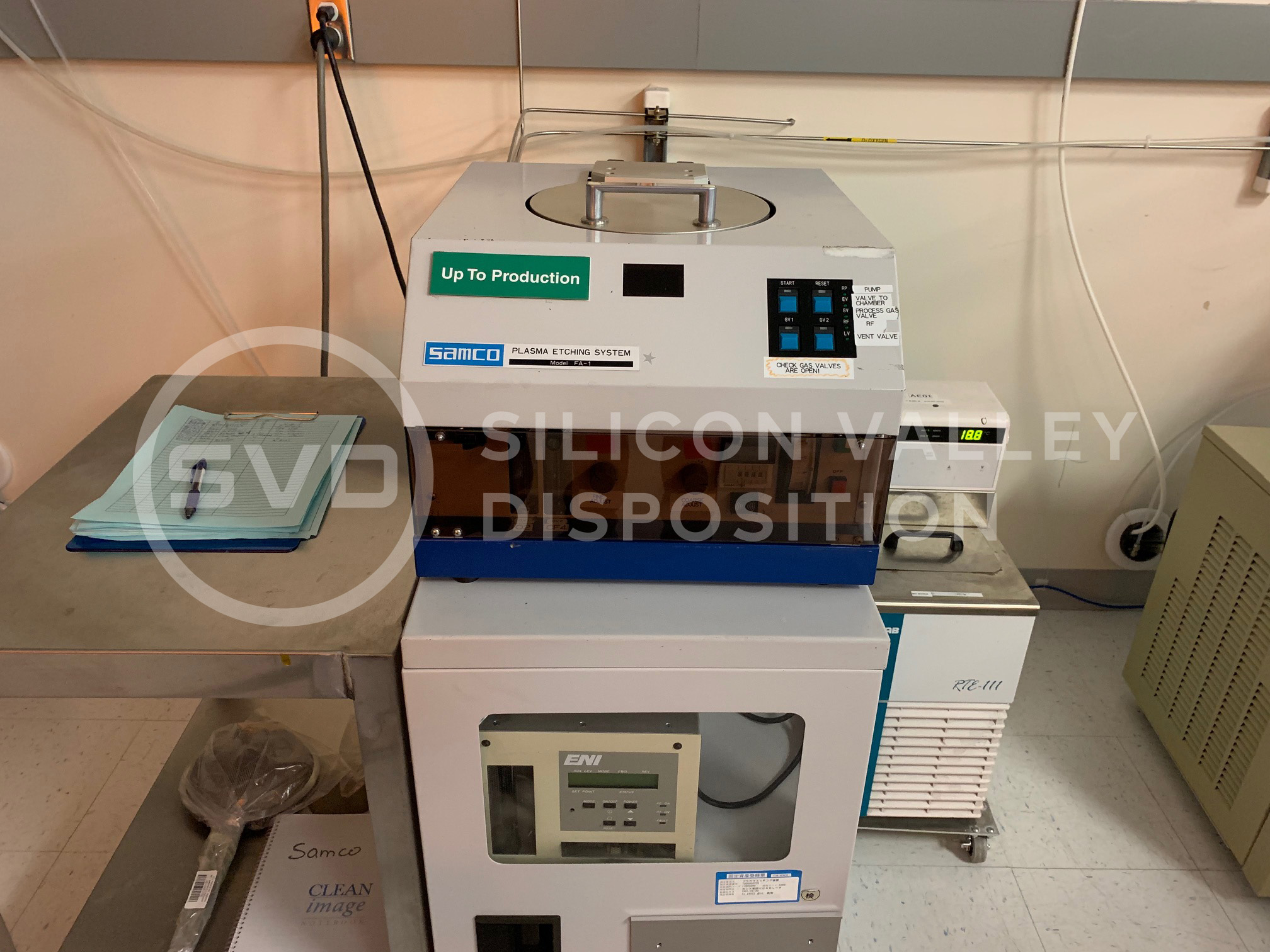

Samco Plasma Etching System

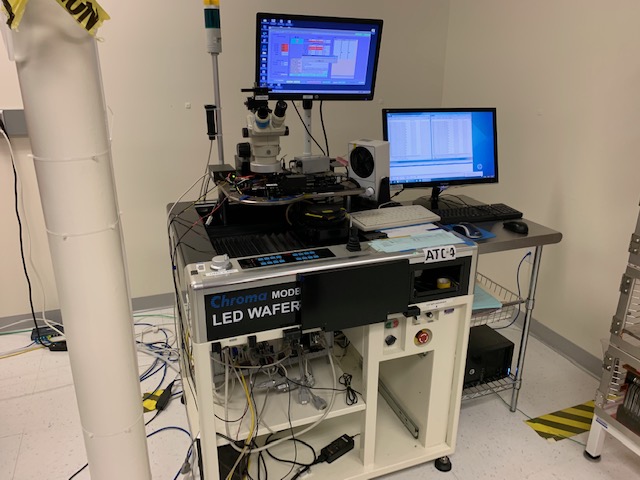

Chroma LED Wafer Probe

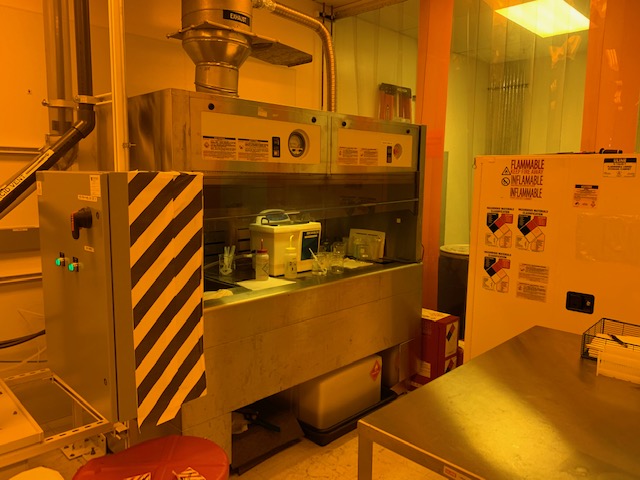

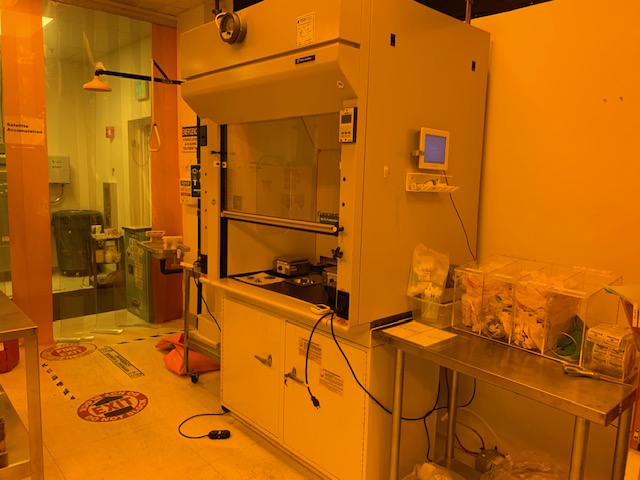

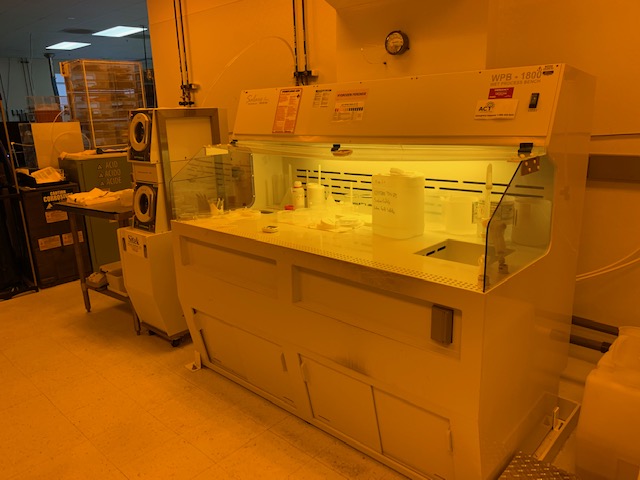

Amerimade Wet Bench Model FH-6FT-SS

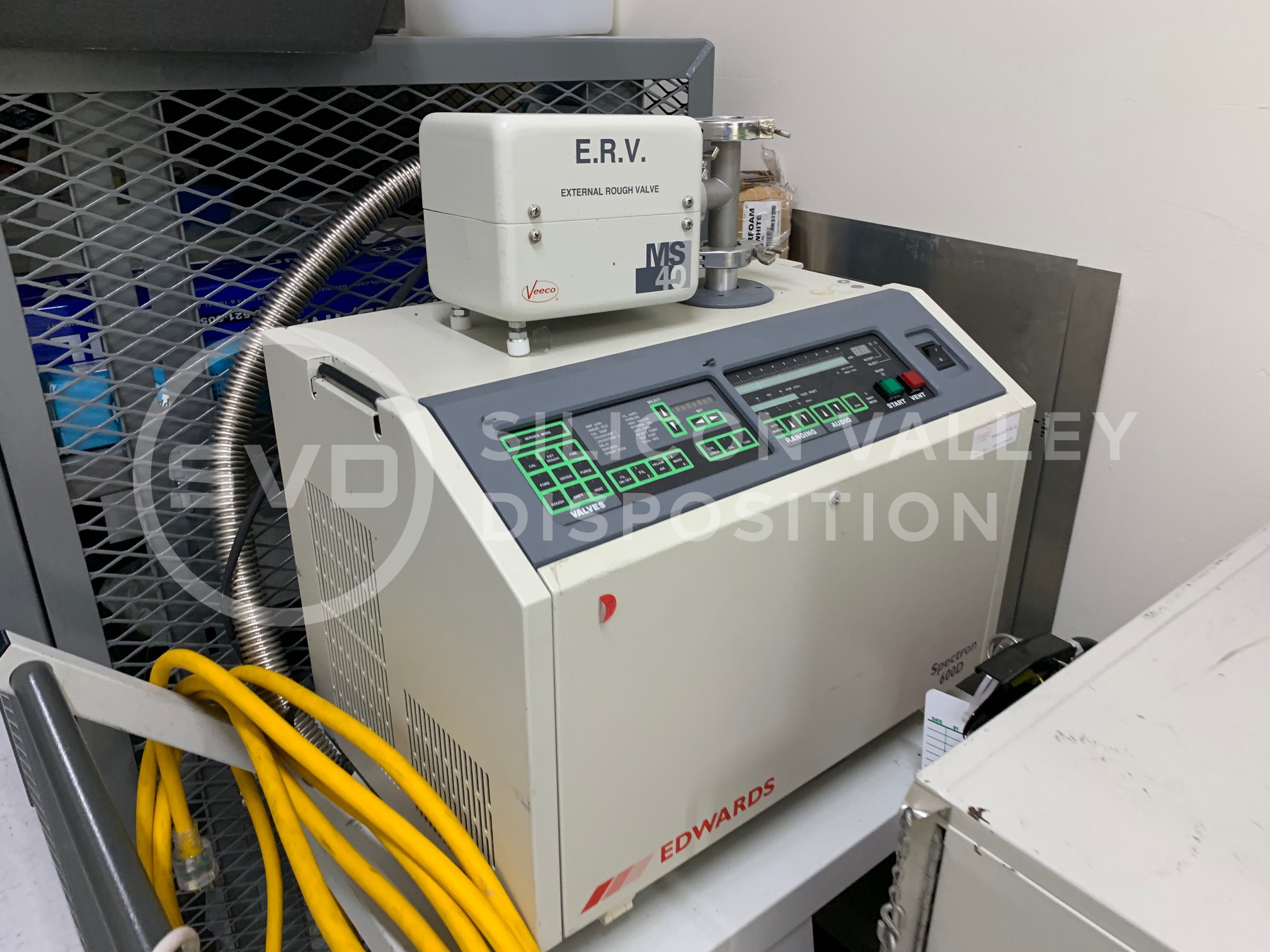

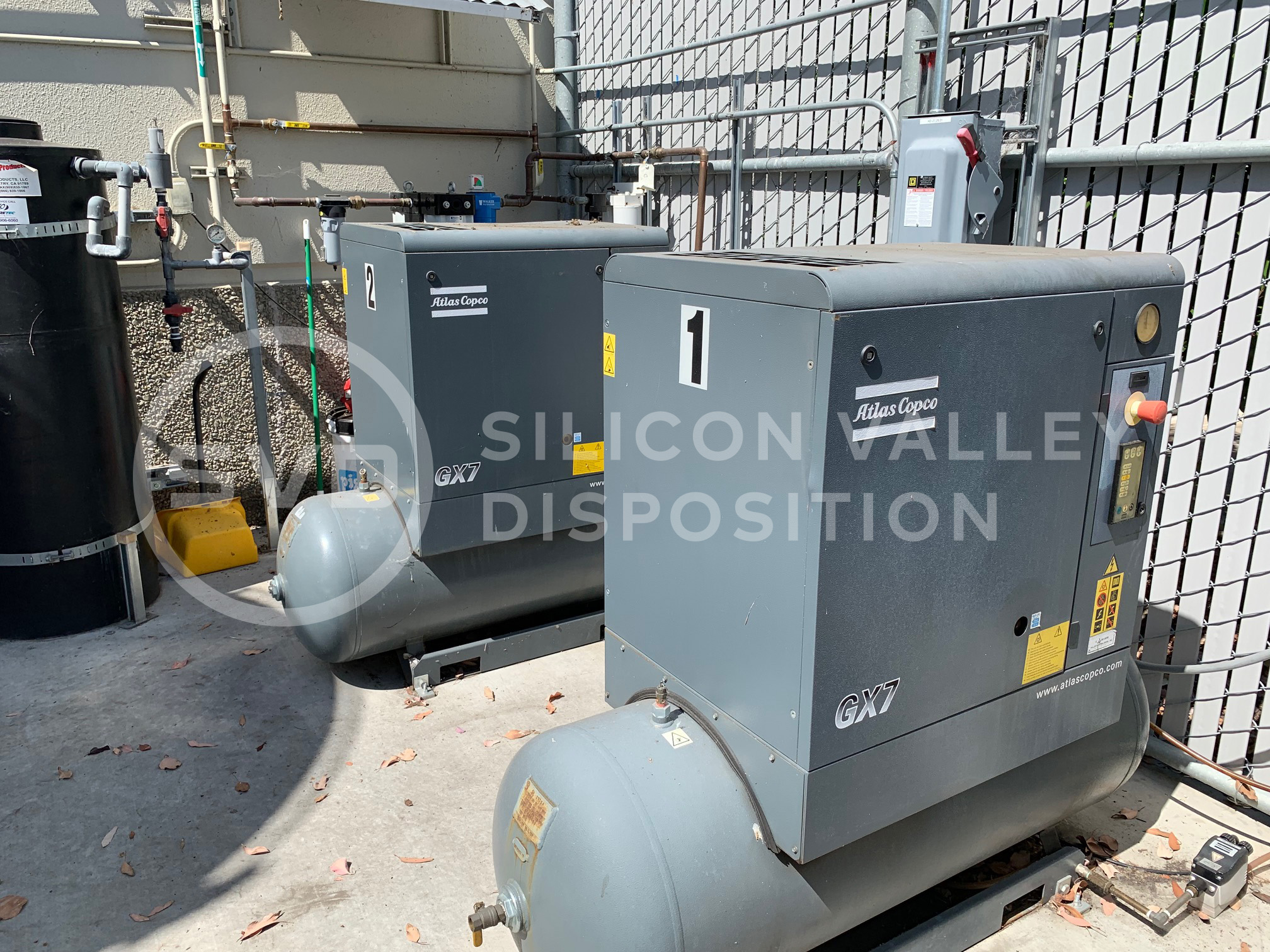

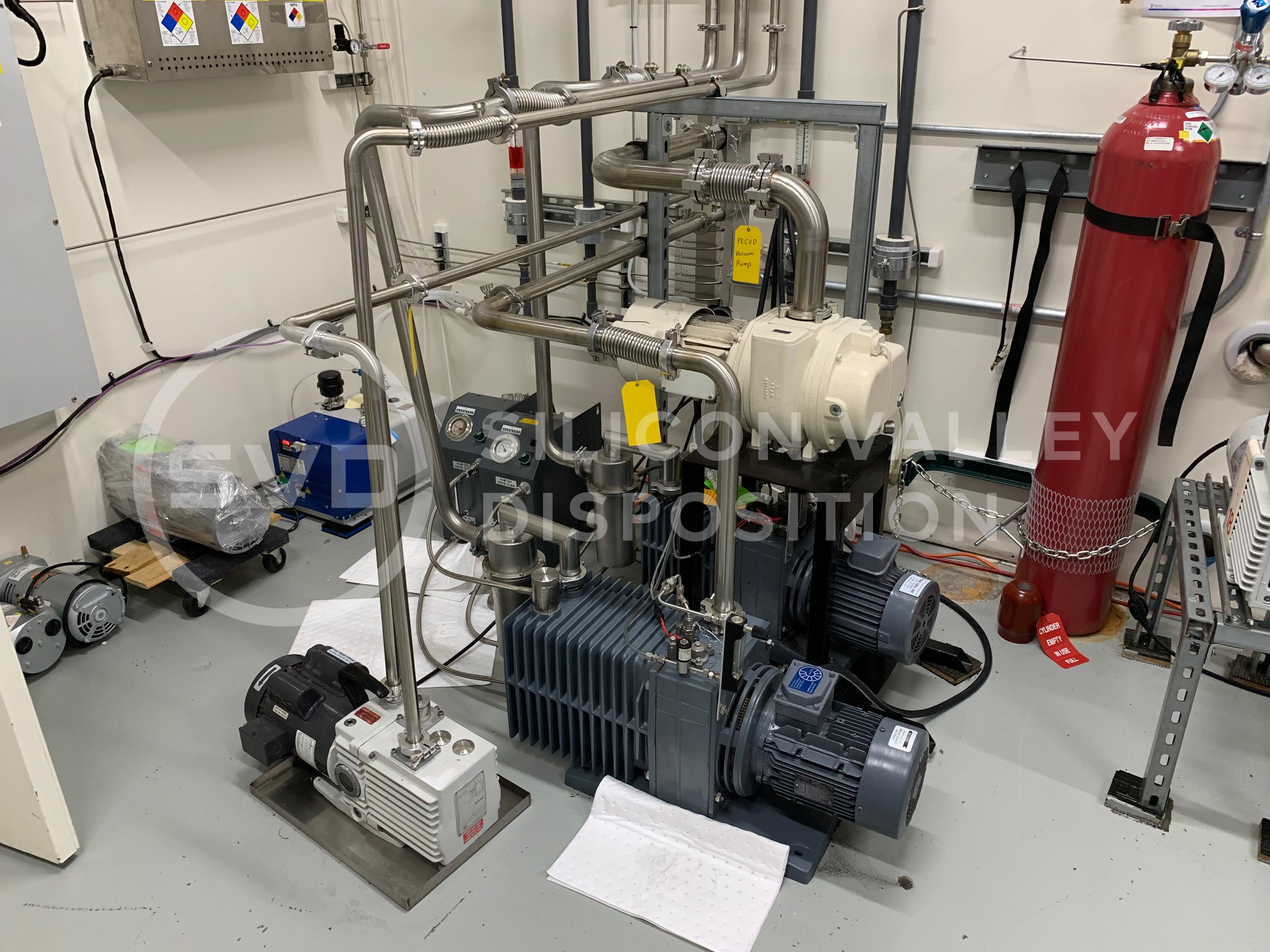

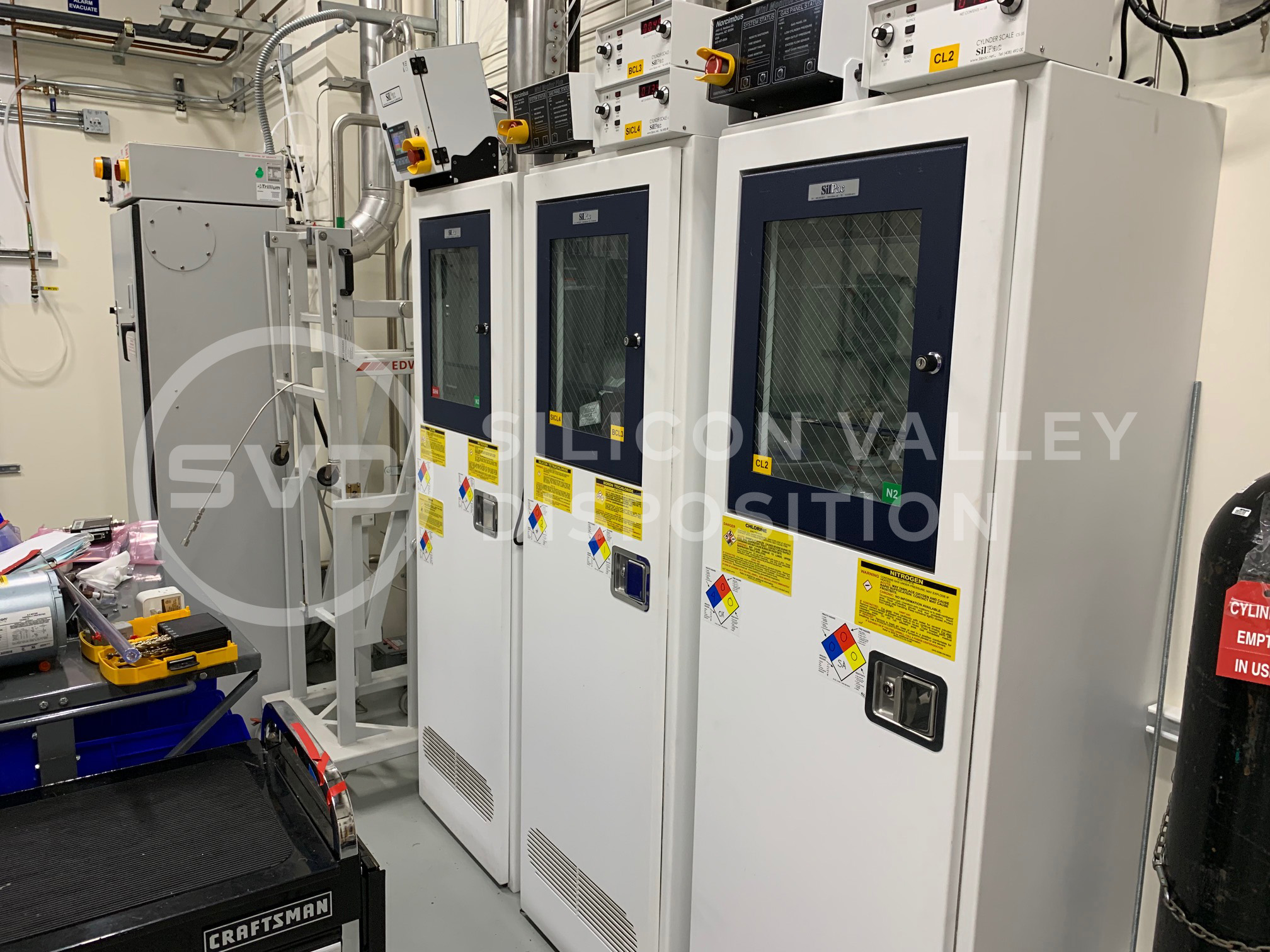

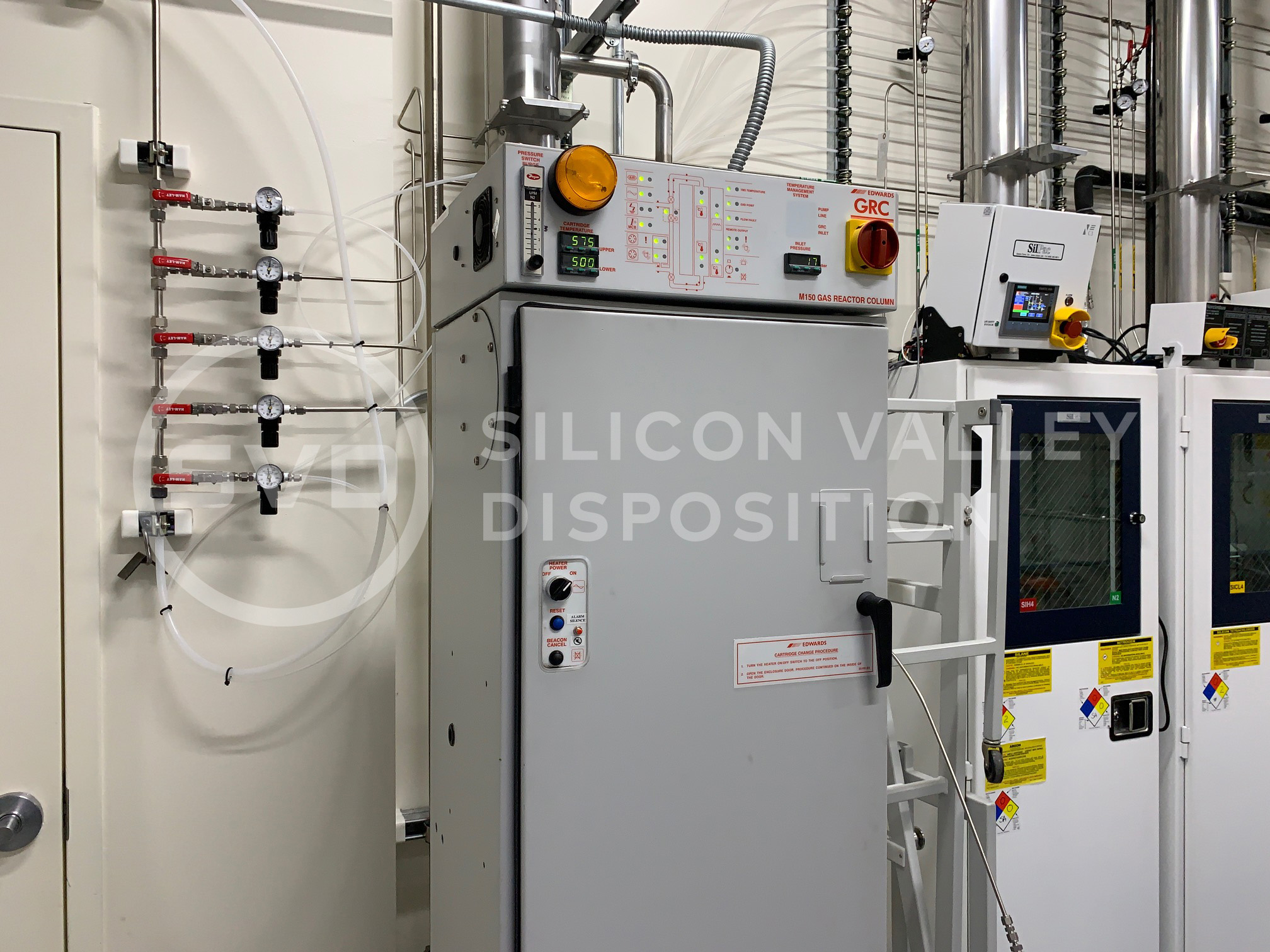

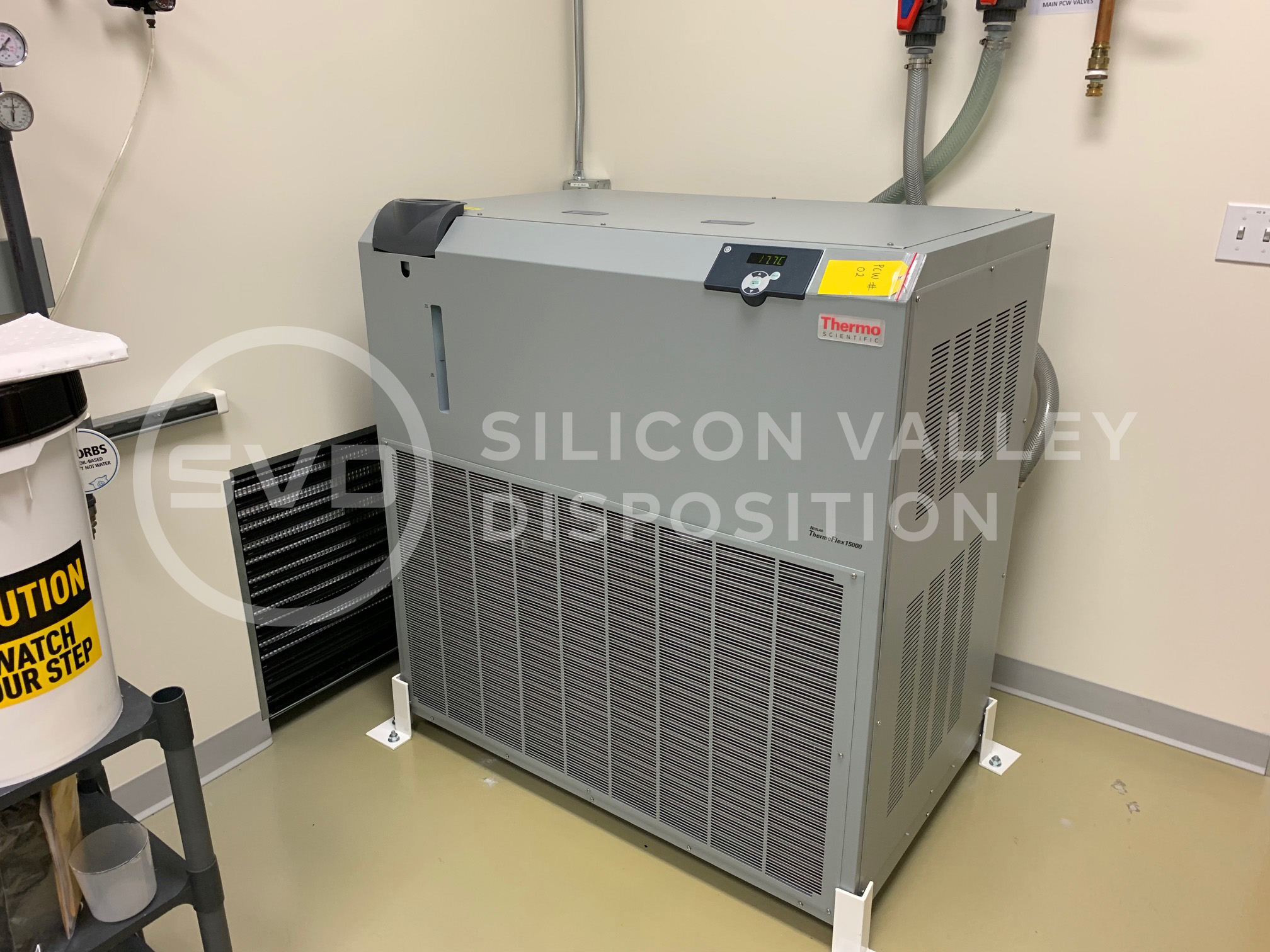

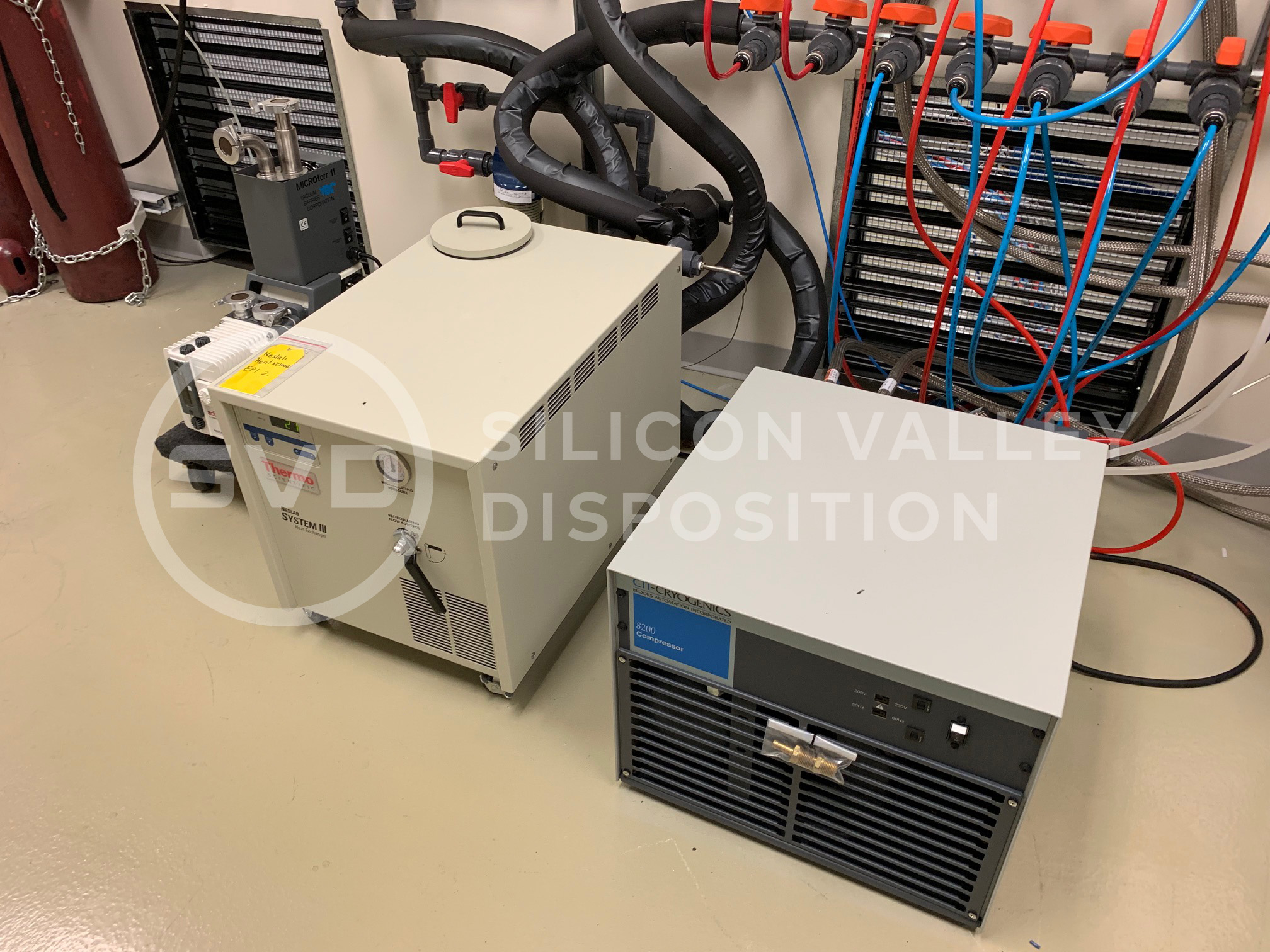

Facility support, Air Compressors, Vacuum Pumps, Chillers, Gas Cabinets

Location(s) Info

All assets are located at 3980 Trust Way, Hayward, CA 94545

RayVio Overview

Leader in UV LED solutions for surface, air and water disinfection

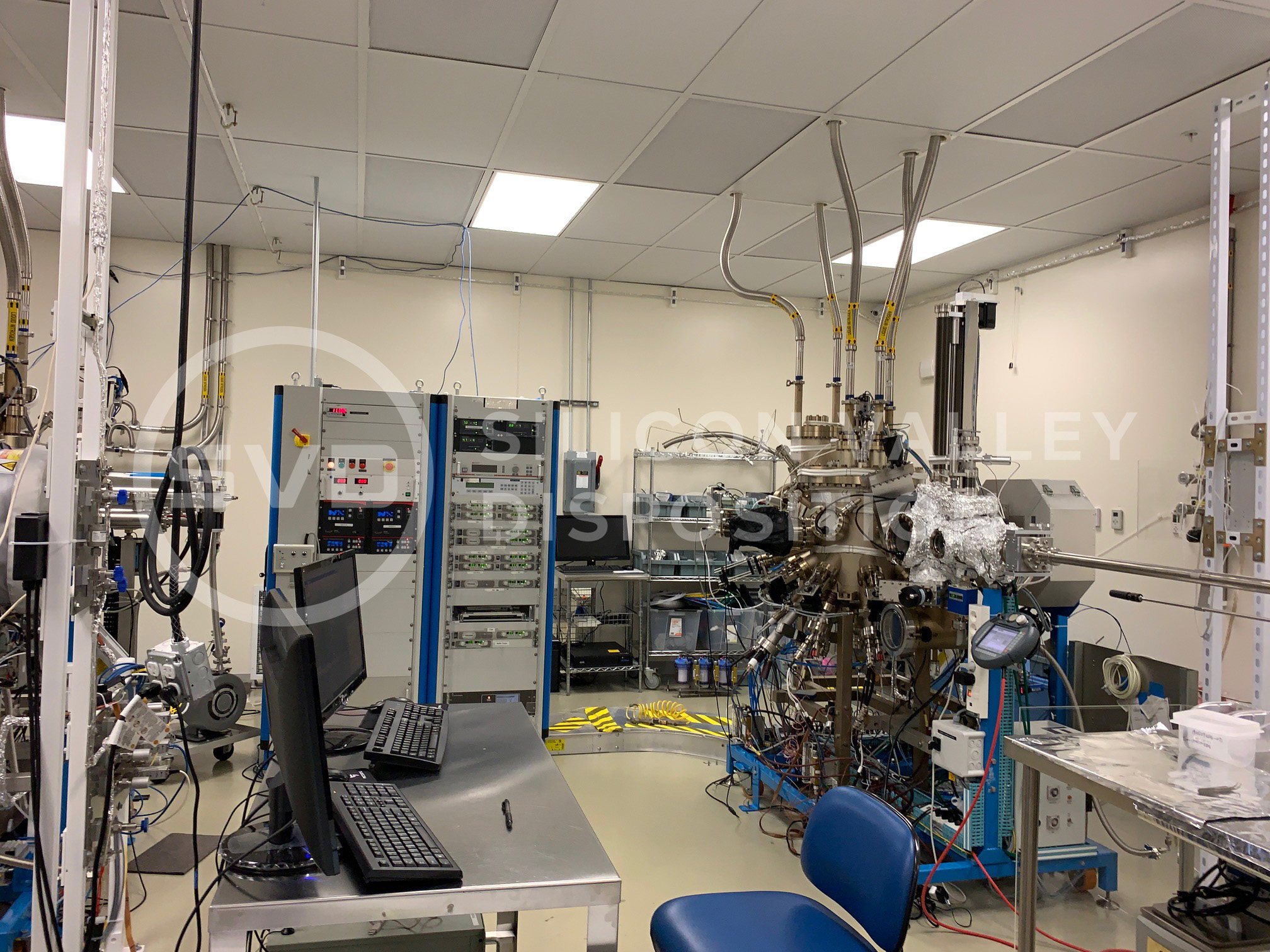

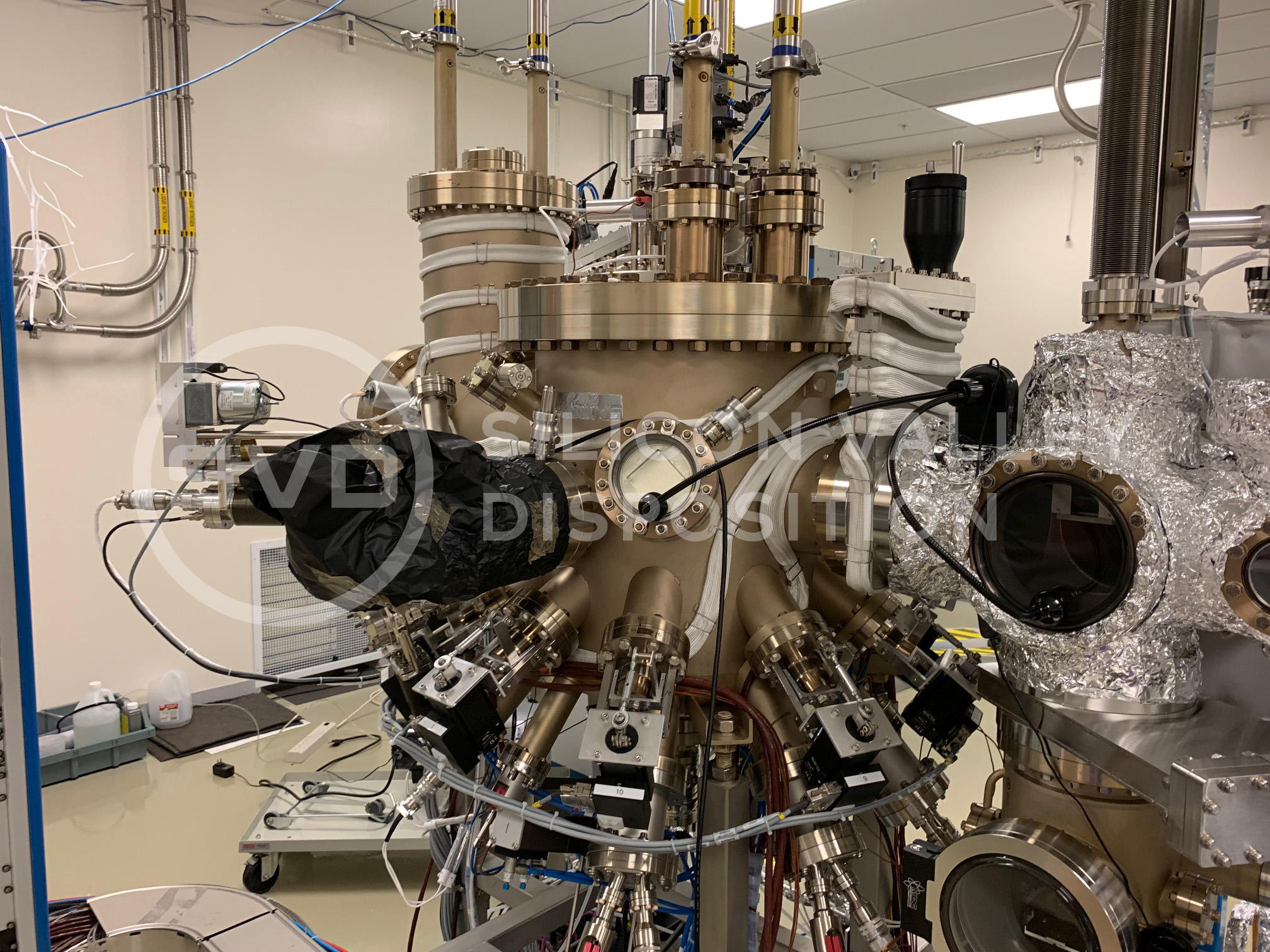

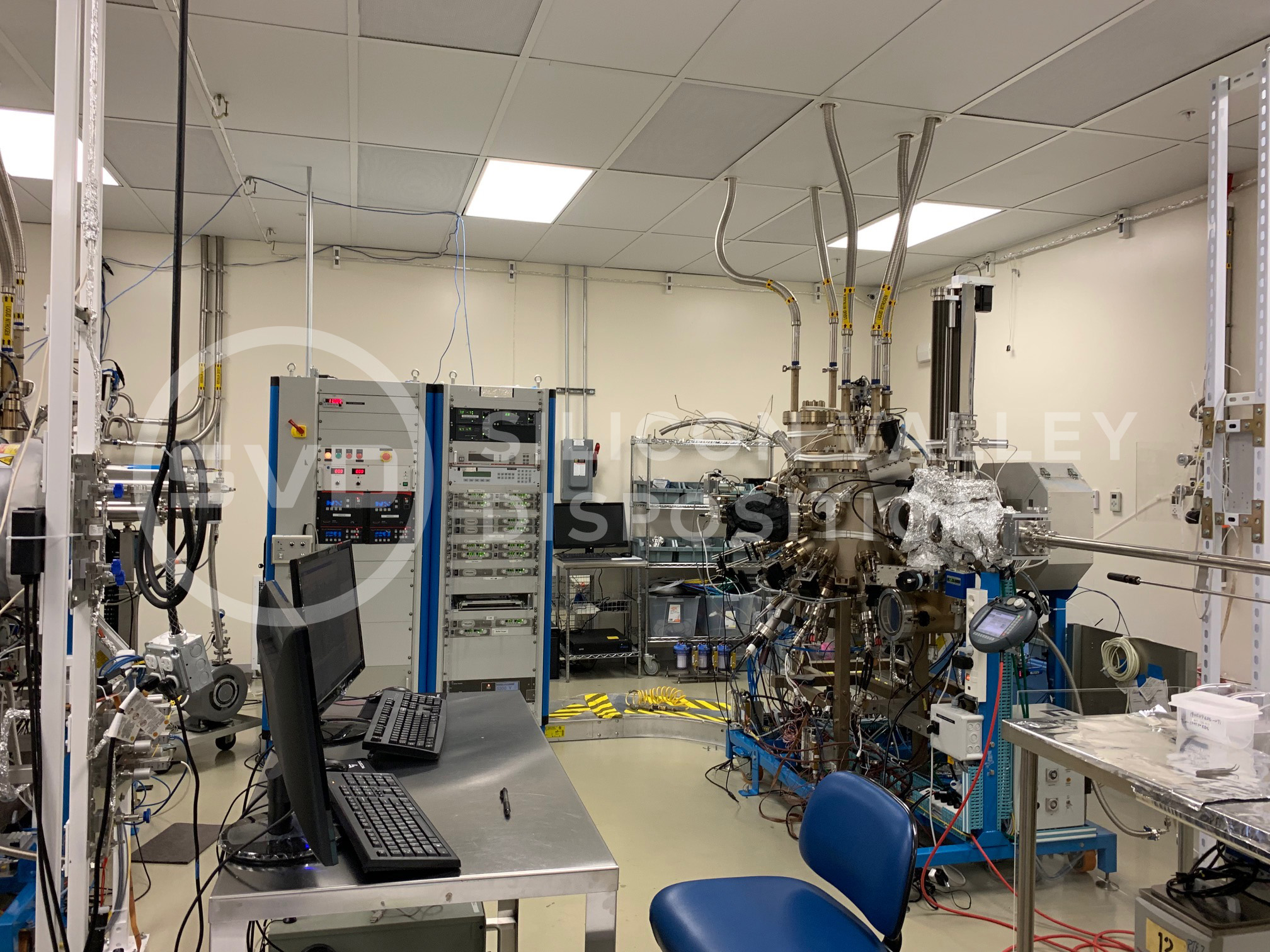

About the Riber Epi Reactors (MBE):

The two MBE EPI systems are custom built in the same way to optimize the growth of GaN, AlN and their alloy materials. Each system has 10 source ports. 3 of them are for 3.75 inch dopant cells. The other 7 are for 4.5 inch cells. Each system also equipped with 2 RF plasma sources to generate active nitrogen species. The solid material source on the systems include Ga, Al, Mg, Si and Ge. The Epi system has a 3-stage chamber design. Specifically, an entry chamber that is backed by a scroll pump and a turbo pump for substrate loading/unloading. A buffer-degas chamber with an ion pump for substrate cleaning. The main growth chamber is backed by a cryopump. The main chamber has a special designed LN2 cryopanel and pumping well system to ensure ultra high vacuum conditions. The lowest pressure achievable is ~1e-11 Torr which is limited by the pressure gauge. Each system has a motorized lift system to transfer a 8 wafer cassette between the entry and buffer chamber and a mechanical transfer rod system to transfer the wafer between the buffer and main chamber. Finally, the systems came with Riber Crystal XE software to control the growth process with programmable recipe capabilities.

For more information regarding the Riber Epi Reactor Systems, please contact:
Jian Yin, PhD
Epitaxial Scientist
RayVio Corporation
Email: [email protected]
Cell: (909) 904-5099
